首页 > 产品中心 > 行业专用电源 > 充电桩专用

充电桩专用

产品选型 >>
产品型号 图片 功率(W) 输入电压(Vac/Vdc) 输出电压(Vdc) 效率(%) 隔离电压(Vac/Vdc) 封装尺寸(mm) 认证/标准 规格书 3D图 样品申请
LC-AC01F2
85-305/- - 62.0*5.0*22.5
LC-AC01F2-TS - 85-305/- - - 62.0*5.0*22.5 -
LC-AC01F2-T - 85-305/- - - 62.0*5.0*22.5 -
LC-AC01F2 - 85-305/- - - 62.0*5.0*22.5 -
LC-AC01P2
85-265/- - 53.8*28.8*19.0
LC-AC01P2 - 85-265/- - - 53.8*28.8*19.0 -
FN1-XXSXXAN 系列
-/2.97-26.4 -/1500 11.5*6.0*10.0
FN1-09S09AN 1 -/8.1-9.9 84 -/1500 11.5*6.0*10.0 -
FN1-15S24AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-15S12AN 1 -/13.5-16.5 86 -/1500 11.5*6.0*10.0 -
FN1-05S24AN 1 -/4.5-5.5 84 -/1500 11.5*6.0*10.0 -
FN1-05S15AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 CE
FN1-3V3S24AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-3V3S15AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-24S24AN 1 -/21.6-26.4 85 -/1500 11.5*6.0*10.0 -
FN1-24S15AN 1 -/21.6-26.4 85 -/1500 11.5*6.0*10.0 -
FN1-24S12AN 1 -/21.6-26.4 86 -/1500 11.5*6.0*10.0 -
FN1-24S09AN 1 -/21.6-26.4 85 -/1500 11.5* 6.0*10.0 -
FN1-24S05AN 1 -/21.6-26.4 84 -/1500 11.5*6.0*10.0 RoHS
FN1-24S3V3AN 1 -/21.6-26.4 77 -/1500 11.5*6.0*10.0 -
FN1-15S15AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-15S05AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-12S24AN 1 -/10.8-13.2 85 -/1500 11.5*6.0*10.0 -
FN1-12S15AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 -
FN1-12S12AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 CE,CB,UL
FN1-12S09AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 -
FN1-12S05AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 CB,UL,RoHS
FN1-12S3V3AN 1 -/10.8-13.2 77 -/1500 11.5*6.0*10.0 -
FN1-05S12AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 CE
FN1-05S09AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 -
FN1-05S05AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 UL,RoHS
FN1-05S3V3AN 1 -/4.5-5.5 80 -/1500 11.5*6.0*10.0 -
FN1-3V3S12AN 1 -/2.97-3.63 85 -/1500 11.5*6.0*10.0 -
FN1-3V3S05AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-3V3S3V3AN 1 -/2.97-3.63 76 -/1500 11.5*6.0*10.0 -
UA10-220SXXP2D(-T)(-TS) 系列
90-265/127-380 3000/- 53.8*28.8*19.0
UA10-220S05V3P2D 10 90-265/127-380 75 3000/- 53.8*28.8*19.0 -
UA10-220S24P2D 10 90-265/127-380 83 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S15P2D 10 90-265/127-380 82 3000/- 53.8*28.8*19.0 -
UA10-220S12V5P2D 10 90-265/127-380 82 3000/- 53.8*28.8*19.0 -
UA10-220S12P2D 10 90-265/127-380 81 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S09P2D 10 90-265/127-380 81 3000/- 53.8*28.8*19.0 -
UA10-220S06P2D 10 90-265/127-380 75 3000/- 53.8*28.8*19.0 -
UA10-220S05P2D 10 90-265/127-380 74 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S3V3P2D 10 90-265/127-380 74 3000/- 53.8*28.8*19.0 -
PFD12-XXSXXA3C2-(XXX) 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD12-36S24A3(C)2 12 -/18-75 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S15A3(C)2 12 -/18-75 89 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S12A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S09A3(C)2 12 -/18-75 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S5V5A3(C)2 12 -/18-75 84 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S05A3(C)2 12 -/18-75 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S3V3A3(C)2 12 -/18-75 78 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S24A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S20A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S17A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S15A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S12A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S09A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S06A3(C)2 12 -/9-36 85 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S05A3(C)2 12 -/9-36 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S3V3A3(C)2 12 -/9-36 81 -/1500 25.4*25.4*11.0 CE,RoHS
FA15-220SXXF2D4(-T)(-TS) 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220S24F2D4 15 85-265/120-380 86 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S20F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 -
FA15-220S15F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S12F2D4 15 85-265/120-380 84 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S09F2D4 15 85-265/120-380 82 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S05F2D4 15 85-265/120-380 74 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S3V3F2D4 15 85-265/120-380 70 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E05XXF2D4 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220E12F2D4 15 85-265/120-380 84 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0515F2D4 15 85-265/120-380 78 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0524F2D4 15 85-265/120-380 78 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0512F2D4 15 85-265/120-380 77 4000/- 62.0*45.0*22.5 CE,RoHS
FA25-220SXXH2D4(-T)(-TS) 系列
85-305/120-430 4200/- 70.0*48.0*23.5
FA25-220S26V5H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S30H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S48H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S29H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S28H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S24H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S18H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S15H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S12H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S09H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S05H2D4 25 85-305/120-430 78 4200/- 70.0*48.0*23.5 CE,RoHS

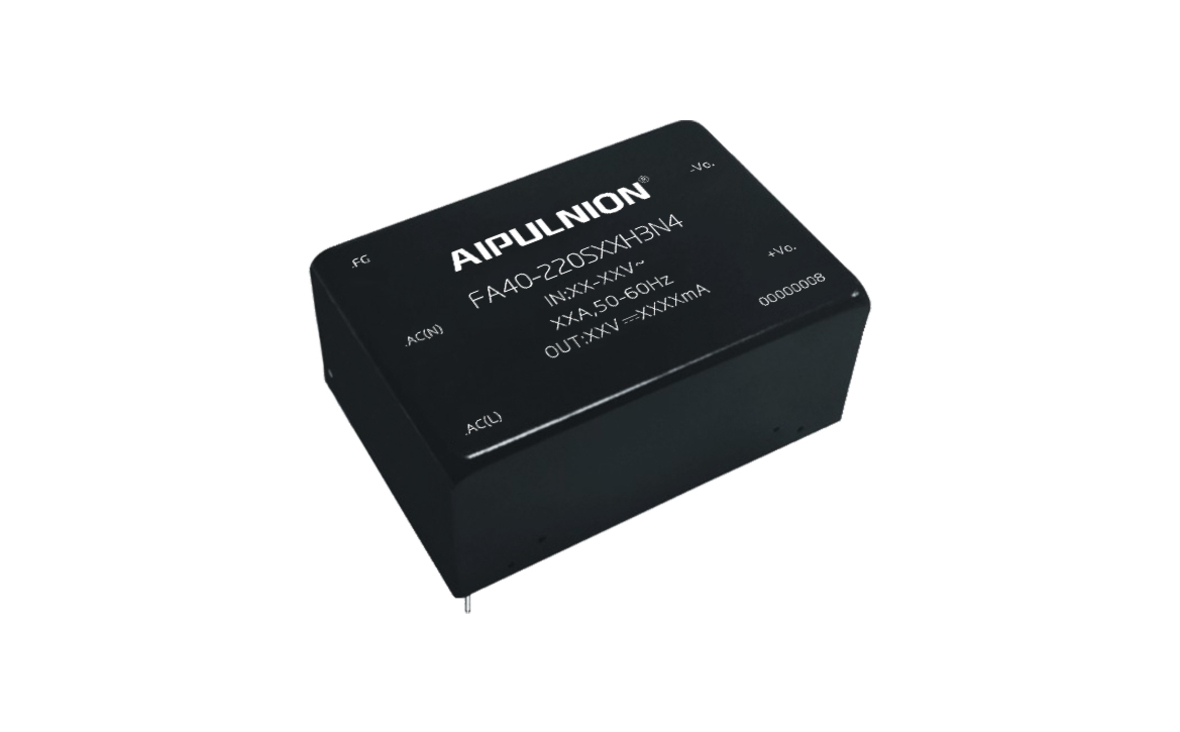

FA40-220SXXH3N4 系列
85-265/120-380 3750/- 70.0*48.0*30.0
FA40-220S24H3N4 40 85-265/120-380 86 3750/- 70.0*48.0*30.0 -
FA40-220S17V6H3N4 40 85-265/120-380 85 3750/- 70.0*48.0*30.0 -
FA40-220S17V5H3N4 40 85-265/120-380 85 3750/- 70.0*48.0*30.0 -
FA40-220S17H3N4 40 85-265/120-380 85 3750/- 70.0*48.0*30.0 -
FA40-220S48H3N4 40 85-265/120-380 87 3750/- 70.0*48.0*30.0 -
FA40-220S12H3N4 40 85-265/120-380 83 3750/- 70.0*48.0*30.0 -
FA40-220S05H3N4 40 85-265/120-380 82 3750/- 70.0*48.0*30.0 -
