首页 > 产品中心 > DC-DC电源 > 小功率（5-50W）

小功率（5-50W）

产品选型 >>
产品型号 图片 功率(W) 输入电压(Vac/Vdc) 输出电压(Vdc) 效率(%) 隔离电压(Vac/Vdc) 封装尺寸(mm) 认证/标准 规格书 3D图 样品申请
FK3-XXXXXE3R2 系列
-/36-75 -/3000 22.0*9.5*12.0
FK3-48D24E3R2 3 -/36-75 82 -/3000 22.0*9.5*12.0 -
FK3-48D15E3R2 3 -/36-75 82 -/3000 22.0*9.5*12.0 -
FK3-48D12E3R2 3 -/36-75 82 -/3000 22.0*9.5*12.0 -
FK3-48D05E3R2 3 -/36-75 79 -/3000 22.0*9.5*12.0 -
FK3-48D3V3E3R2 3 -/36-75 74 -/3000 22.0*9.5*12.0 -
FK3-48S24E3R2 3 -/36-75 86 -/3000 22.0*9.5*12.0 -
FK3-48S15E3R2 3 -/36-75 84 -/3000 22.0*9.5*12.0 -
FK3-48S12E3R2 3 -/36-75 86 -/3000 22.0*9.5*12.0 -
FK3-48S05E3R2 3 -/36-75 82 -/3000 22.0*9.5*12.0 -
FK3-48S3V3E3R2 3 -/36-75 72 -/3000 22.0*9.5*12.0 -
FK3-24D24E3R2 3 -/18-36 86 -/3000 22.0*9.5*12.0 -
FK3-24D15E3R2 3 -/18-36 86 -/3000 22.0*9.5*12.0 -
FK3-24D12E3R2 3 -/18-36 85 -/3000 22.0*9.5*12.0 -
FK3-24D09E3R2 3 -/18-36 80 -/3000 22.0*9.5*12.0 -
FK3-24D05E3R2 3 -/18-36 80 -/3000 22.0*9.5*12.0 -
FK3-24D3V3E3R2 3 -/18-36 74 -/3000 22.0*9.5*12.0 -
FK3-24S24E3R2 3 -/18-36 86 -/3000 22.0*9.5*12.0 -
FK3-24S15E3R2 3 -/18-36 86 -/3000 22.0*9.5*12.0 -
FK3-24S12E3R2 3 -/18-36 83 -/3000 22.0*9.5*12.0 -
FK3-24S09E3R2 3 -/18-36 80 -/3000 22.0*9.5*12.0 -
FK3-24S05E3R2 3 -/18-36 78 -/3000 22.0*9.5*12.0 -
FK3-24S3V3E3R2 3 -/18-36 74 -/3000 22.0*9.5*12.0 -
FK3-12D24E3R2 3 -/9-18 80 -/3000 22.0*9.5*12.0 -
FK3-12D15E3R2 3 -/9-18 80 -/3000 22.0*9.5*12.0 -
FK3-12D12E3R2 3 -/9-18 83 -/3000 22.0*9.5*12.0 -
FK3-12D05E3R2 3 -/9-18 79 -/3000 22.0*9.5*12.0 -
FK3-12D3V3E3R2 3 -/9-18 74 -/3000 22.0*9.5*12.0 -
FK3-12S24E3R2 3 -/9-18 81 -/3000 22.0*9.5*12.0 -
FK3-12S15E3R2 3 -/9-18 82 -/3000 22.0*9.5*12.0 -
FK3-12S12E3R2 3 -/9-18 82 -/3000 22.0*9.5*12.0 -
FK3-12S05E3R2 3 -/9-18 79 -/3000 22.0*9.5*12.0 -
FK3-12S3V3E3R2 3 -/9-18 72 -/3000 22.0*9.5*12.0 -
FK3-05D24E3R2 3 -/4.5-9 76 -/3000 22.0*9.5*12.0 -
FK3-05D15E3R2 3 -/4.5-9 76 -/3000 22.0*9.5*12.0 -
FK3-05D12E3R2 3 -/4.5-9 74 -/3000 22.0*9.5*12.0 -
FK3-05D05E3R2 3 -/4.5-9 74 -/3000 22.0*9.5*12.0 -
FK3-05D3V3E3R2 3 -/4.5-9 68 -/3000 22.0*9.5*12.0 -
FK3-05S24E3R2 3 -/4.5-9 76 -/3000 22.0*9.5*12.0 -
FK3-05S15E3R2 3 -/4.5-9 76 -/3000 22.0*9.5*12.0 -
FK3-05S12E3R2 3 -/4.5-9 79 -/3000 22.0*9.5*12.0 -
FK3-05S09E3R2 3 -/4.5-9 74 -/3000 22.0*9.5*12.0 -
FK3-05S05E3R2 3 -/4.5-9 75 -/3000 22.0*9.5*12.0 -
FK3-05S3V3E3R2 3 -/4.5-9 68 -/3000 22.0*9.5*12.0 -
BK5-600SXXH1N4 系列
-/200-1200 -/4000 70.0*48.0*23.5
BK5-600S24H1N4 5 -/200-1200 78 -/4000 70.0*48.0*23.5 -
BK5-600S15H1N4 5 -/200-1200 76 -/4000 70.0*48.0*23.5 -
BK5-600S12H1N4 5 -/200-1200 75 -/4000 70.0*48.0*23.5 -
BK5-600S05H1N4 5 -/200-1200 68 -/4000 70.0*48.0*23.5 -

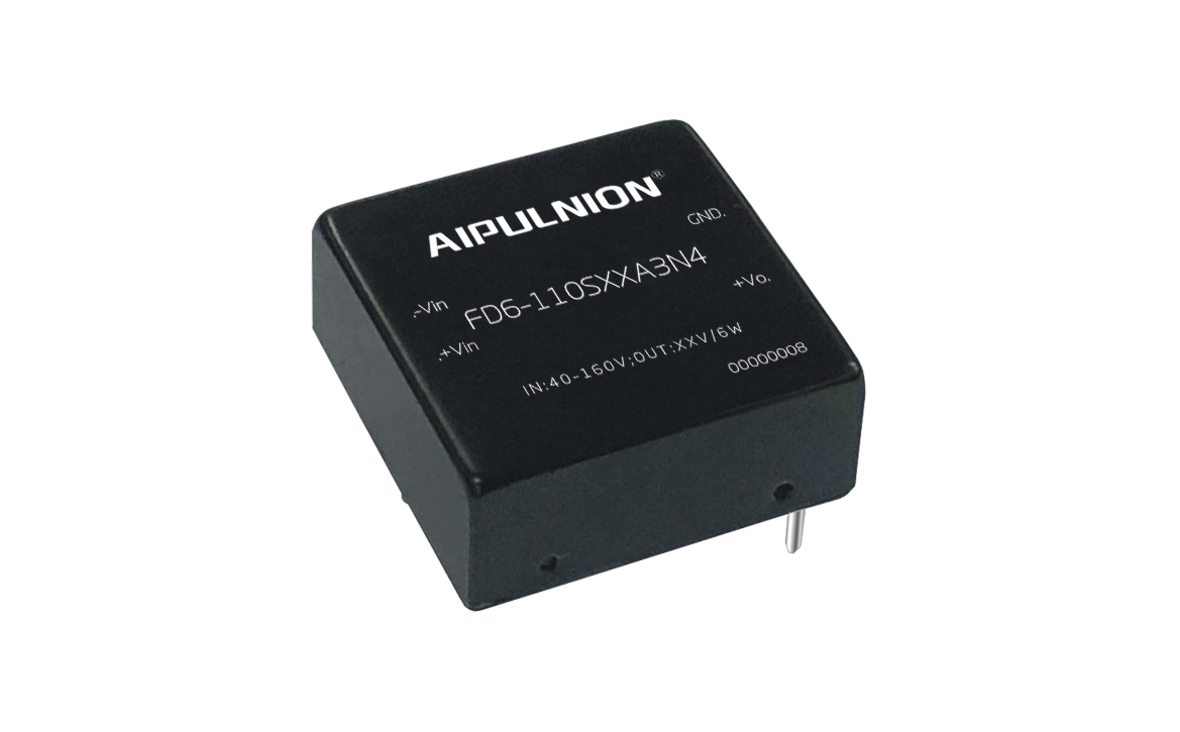

FD6-110SXXA3N4 系列
-/40 -160 2150/- 25.4*25.4*11.7
FD6-110S24A3N4 6 -/40 -160 86 2150/- 25.4*25.4*11.7 -
FD6-110S15A3N4 6 -/40 -160 85 2150/- 25.4*25.4*11.7 -
FD6-110S12A3N4 6 -/40 -160 85 2150/- 25.4*25.4*11.7 -
FD6-110S09A3N4 6 -/40 -160 82 2150/- 25.4*25.4*11.7 -
FD6-110S05A3N4 6 -/40 -160 81 2150/- 25.4*25.4*11.7 -
FD6-110S3V3A3N4 6 -/40 -160 77 2150/- 25.4*25.4*11.7 -

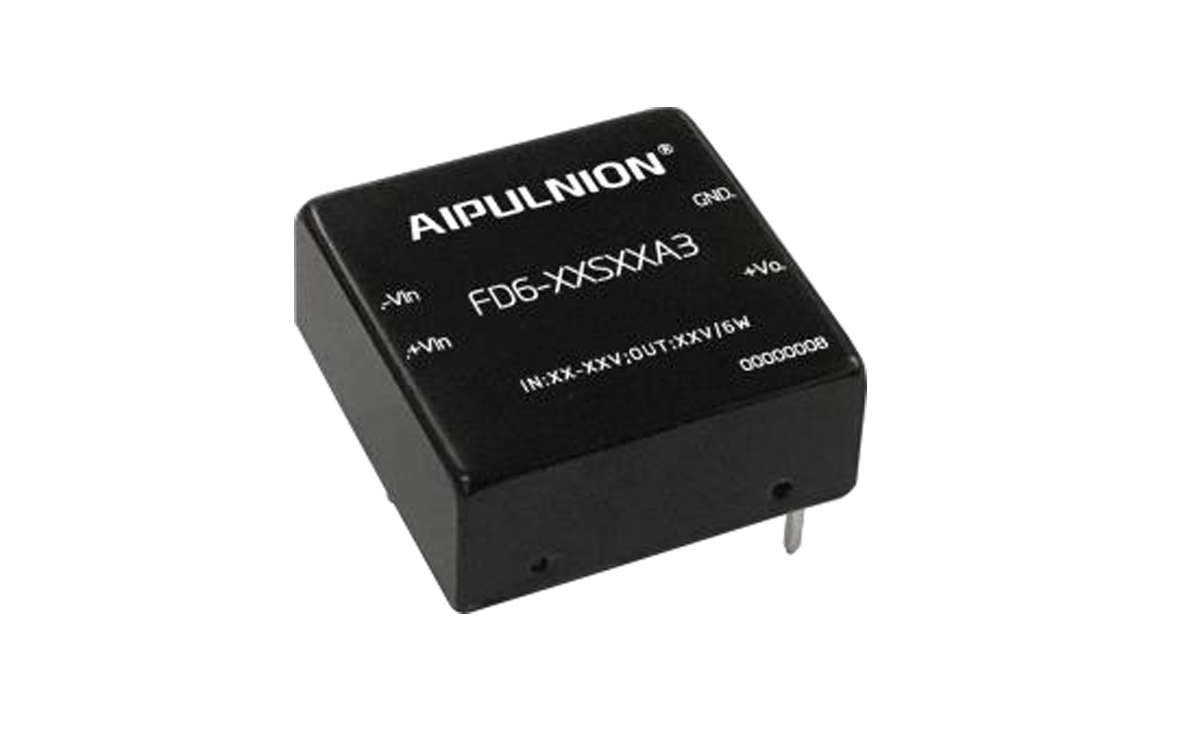

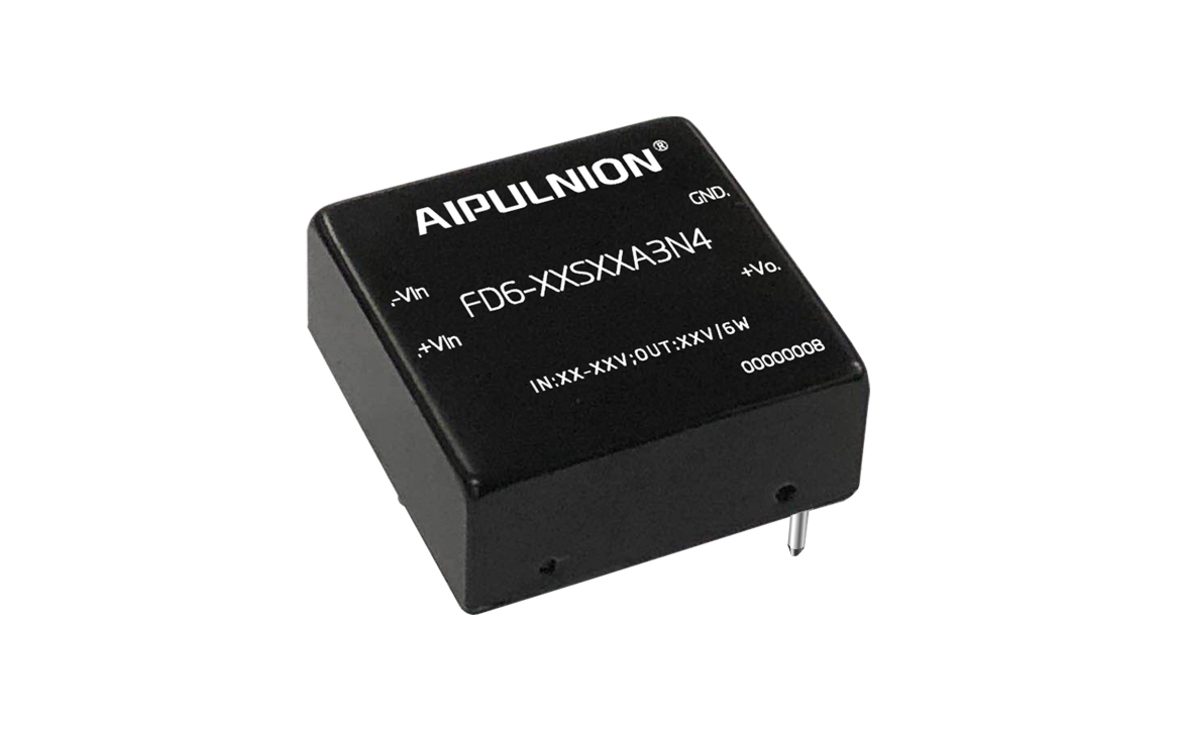

FD6-XXSXXA3N4 系列
-/9-75 2150/- 25.4*25.4*12.5
FD6-36S24A3N4 6 -/18-75 88 2150/- 25.4*25.4*12.5 -
FD6-36S15A3N4 6 -/18-75 87 2150/- 25.4*25.4*12.5 -
FD6-36S12A3N4 6 -/18-75 86 2150/- 25.4*25.4*12.5 -
FD6-36S09A3N4 6 -/18-75 85 2150/- 25.4*25.4*12.5 -
FD6-36S05A3N4 6 -/18-75 84 2150/- 25.4*25.4*12.5 -
FD6-36S3V3A3N4 6 -/18-75 82 2150/- 25.4*25.4*12.5 -
FD6-18S24A3N4 6 -/9-36 88 2150/- 25.4*25.4*12.5 -
FD6-18S15A3N4 6 -/9-36 87 2150/- 25.4*25.4*12.5 -
FD6-18S12A3N4 6 -/9-36 86 2150/- 25.4*25.4*12.5 -
FD6-18S09A3N4 6 -/9-36 85 2150/- 25.4*25.4*12.5 -
FD6-18S05A3N4 6 -/9-36 84 2150/- 25.4*25.4*12.5 -
FD6-18S3V3A3N4 6 -/9-36 82 - 25.4*25.4*12.5 -

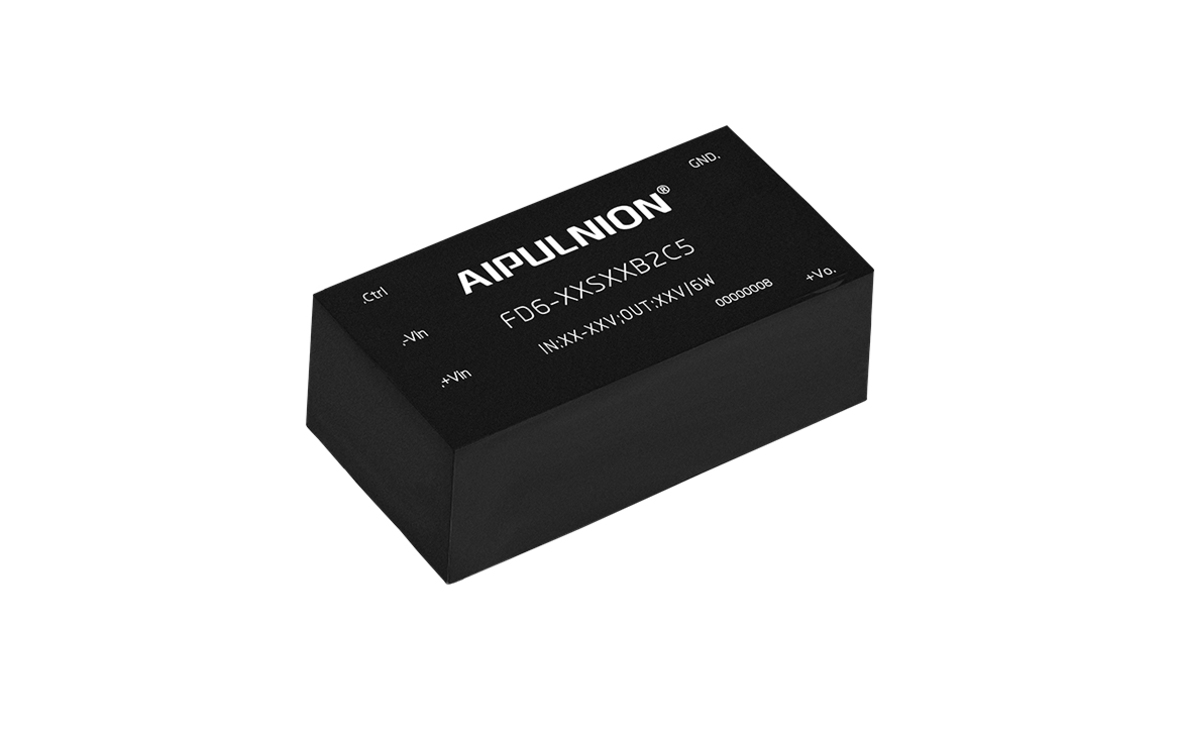

FD6-XXSXXB2C5 系列
-/9-75 -/5000 50.8*25.4*15.6
FD6-36S24B2C5 6 -/18-75 90 -/5000 50.8*25.4*15.6 -
FD6-36S15B2C5 6 -/18-75 90 -/5000 50.8*25.4*15.6 -
FD6-36S12B2C5 6 -/18-75 90 -/5000 50.8*25.4*15.6 -
FD6-36S09B2C5 6 -/18-75 90 -/5000 50.8*25.4*15.6 -
FD6-36S05B2C5 6 -/18-75 88 -/5000 50.8*25.4*15.6 -
FD6-36S3V3B2C5 6 -/18-75 86 -/5000 50.8*25.4*15.6 -
FD6-18S24B2C5 6 -/9-36 87 -/5000 50.8*25.4*15.6 -
FD6-18S15B2C5 6 -/9-36 88 -/5000 50.8*25.4*15.6 -
FD6-18S12B2C5 6 -/9-36 88 -/5000 50.8*25.4*15.6 -
FD6-18S09B2C5 6 -/9-36 88 -/5000 50.8*25.4*15.6 -
FD6-18S05B2C5 6 -/9-36 88 -/5000 50.8*25.4*15.6 -
FD6-18S3V3B2C5 6 -/9-36 87 -/5000 50.8*25.4*15.6 -
PFD6-110DXXA3(C)3 系列
-/40 -160 -/2250 25.4*25.4*12.5
PFD6-110D15A3(C)3 6 -/40 -160 85 -/2250 25.4*25.4*12.5 -

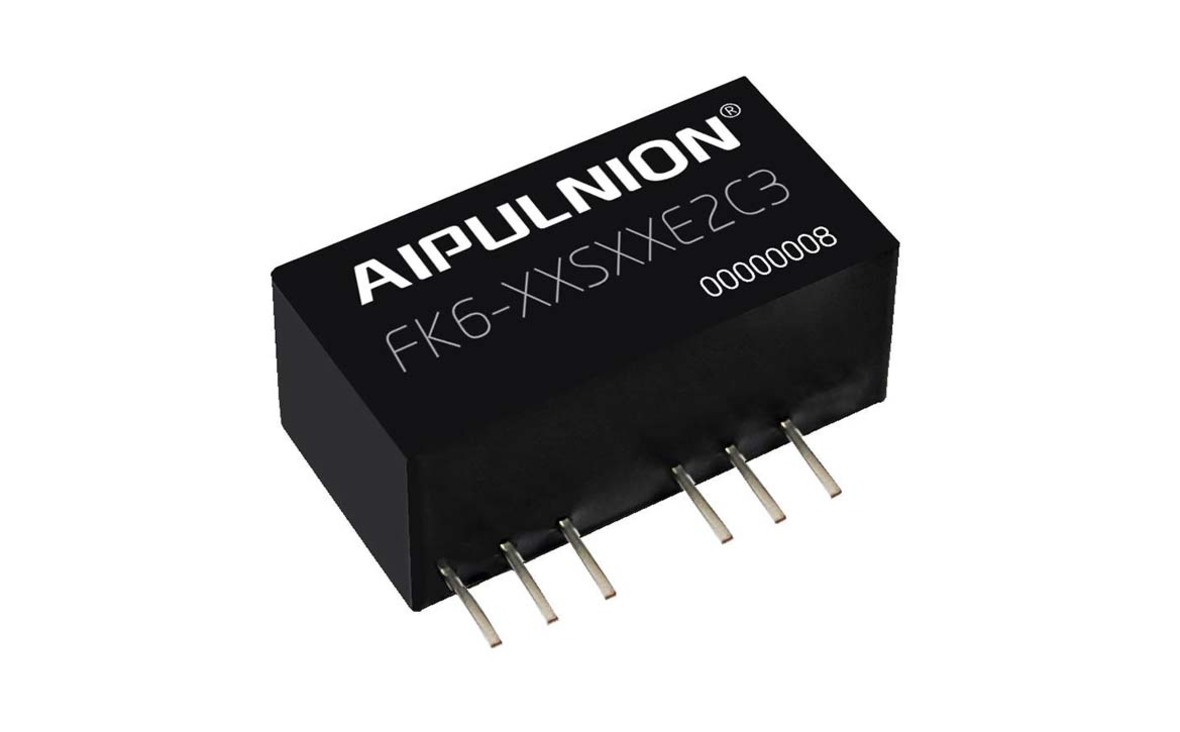

FK6-XXSXXE2C3 系列
-/9-75 -/3000 22.0*9.5*12.0
FK6-36S24E2C3 6 -/18-75 86 -/3000 22.0*9.5*12.0 -
FK6-36S15E2C3 6 -/18-75 87 -/3000 22.0*9.5*12.0 -
FK6-36S12E2C3 6 -/18-75 86 -/3000 22.0*9.5*12.0 -
FK6-36S09E2C3 6 -/18-75 84 -/3000 22.0*9.5*12.0 -
FK6-36S05E2C3 6 -/18-75 83 -/3000 22.0*9.5*12.0 -
FK6-36S3V3E2C3 6 -/18-75 79 -/3000 22.0*9.5*12.0 -
FK6-18S48E2C3 6 -/9-36 86 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S24E2C3 6 -/9-36 85 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S15E2C3 6 -/9-36 87 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S12E2C3 6 -/9-36 86 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S09E2C3 6 -/9-36 84 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S05E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S3V3E2C3 6 -/9-36 78 -/3000 22.0*9.5*12.0 CE,RoHS

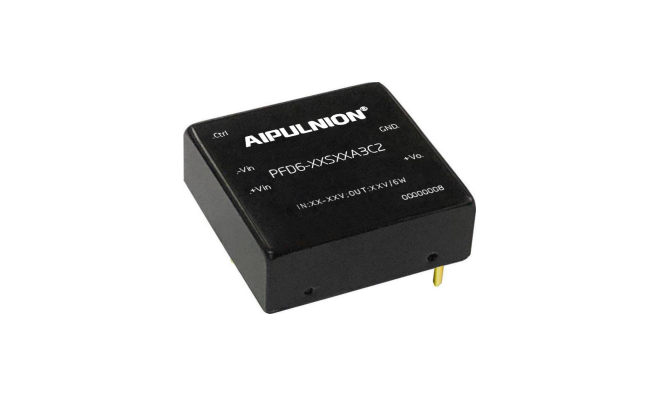

PFD6-XXS&DXXA3(C)2 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD6-18S40A3(C)2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
PFD6-36D24A3(C)2 6 -/18-75 86 -/1500 25.4*25.4*11.0 -
PFD6-36D15A3(C)2 6 -/18-75 88 -/1500 25.4*25.4*11.0 -
PFD6-36D12A3(C)2 6 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD6-36D09A3(C)2 6 -/18-75 84 -/1500 25.4*25.4*11.0 -
PFD6-36D05A3(C)2 6 -/18-75 83 -/1500 25.4*25.4*11.0 -
PFD6-36S24A3(C)2 6 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD6-36S15A3(C)2 6 -/18-75 88 -/1500 25.4*25.4*11.0 -
PFD6-36S12A3(C)2 6 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD6-36S09A3(C)2 6 -/18-75 85 -/1500 25.4*25.4*11.0 -
PFD6-36S05A3(C)2 6 -/18-75 84 -/1500 25.4*25.4*11.0 -
PFD6-36S3V3A3(C)2 6 -/18-75 80 -/1500 25.4*25.4*11.0 -
PFD6-18D24A3(C)2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
PFD6-18D15A3(C)2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
PFD6-18D12A3(C)2 6 -/9-36 85 -/1500 25.4*25.4*11.0 -
PFD6-18D09A3(C)2 6 -/9-36 84 -/1500 25.4*25.4*11.0 -
PFD6-18D05A3(C)2 6 -/9-36 82 -/1500 25.4*25.4*11.0 -
PFD6-18S25A3(C)2 6 -/9-36 85 -/1500 25.4*25.4*11.0 -
PFD6-18S24A3(C)2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
PFD6-18S15A3(C)2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
PFD6-18S12A3(C)2 6 -/9-36 85 -/1500 25.4*25.4*11.0 -
PFD6-18S09A3(C)2 6 -/9-36 84 -/1500 25.4*25.4*11.0 -
PFD6-18S05A3(C)2 6 -/9-36 83 -/1500 25.4*25.4*11.0 -
PFD6-18S3V3A3(C)2 6 -/9-36 77 -/1500 25.4*25.4*11.0 -
FD6-18S2V7A3(C)(-T)(-TS) 系列
-/9-36 -/1500 25.4*25.4*11.0
FD6-18S2V7A3(C) 6 -/9-36 78 -/1500 25.4*25.4*11.0 -
FD6-18S15V2A3 系列
-/10.5-36 -/1500 25.4*25.4*11.0
FD6-18S15V2A3 6 -/10.5-36 83 -/1500 25.4*25.4*11.0 -

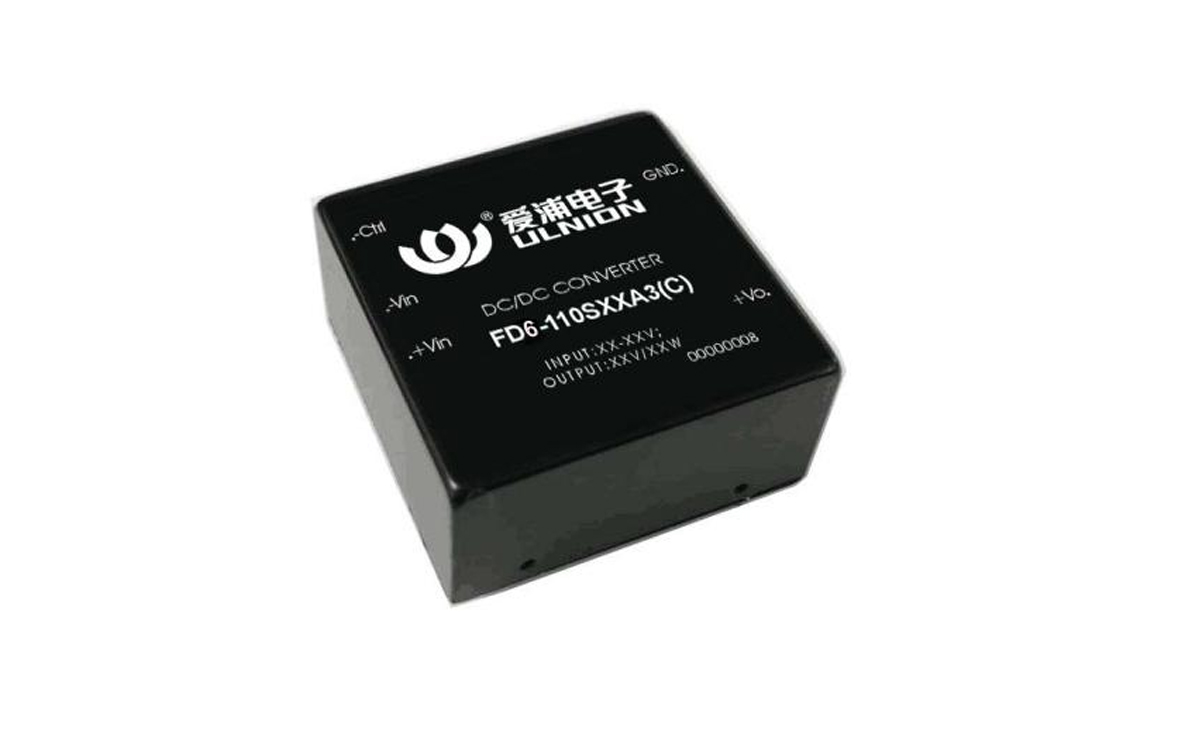

FD6-110SXXA3(C) 系列
-/40 -160 1500/- 25.4*25.4*11.7
FD6-110S05A3(C) 6 -/40 -160 77 1500/- 25.4*25.4*11.7 -

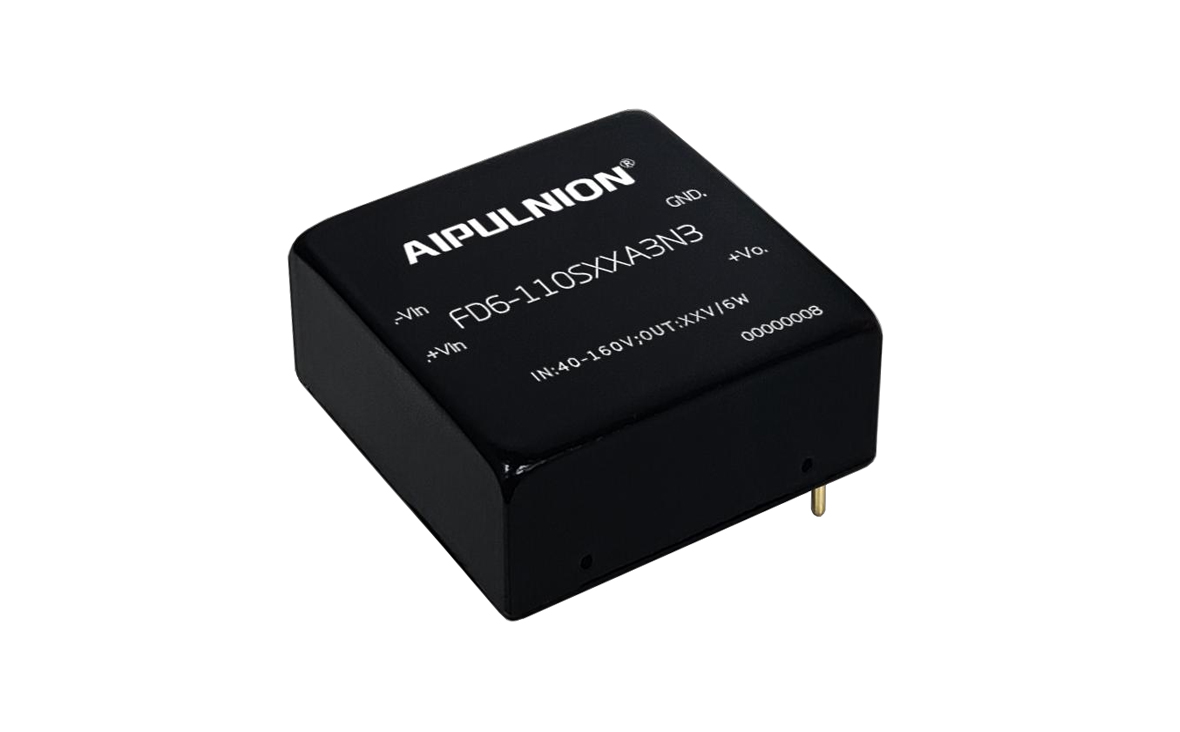

FD6-110SXXA3N3 系列
-/40 -160 1500/- 25.4*25.4*11.7
FD6-110S24A3N3 6 -/40 -160 85 1500/- 25.4*25.4*11.7 -
FD6-110S15A3N3 6 -/40 -160 84 1500/- 25.4*25.4*11.7 -
FD6-110S12A3N3 6 -/40 -160 84 1500/- 25.4*25.4*11.7 -
FD6-110S05A3N3 6 -/40 -160 81 1500/- 25.4*25.4*11.7 -
FD6-110S3V3A3N3 6 -/40 -160 77 1500/- 25.4*25.4*11.7 -

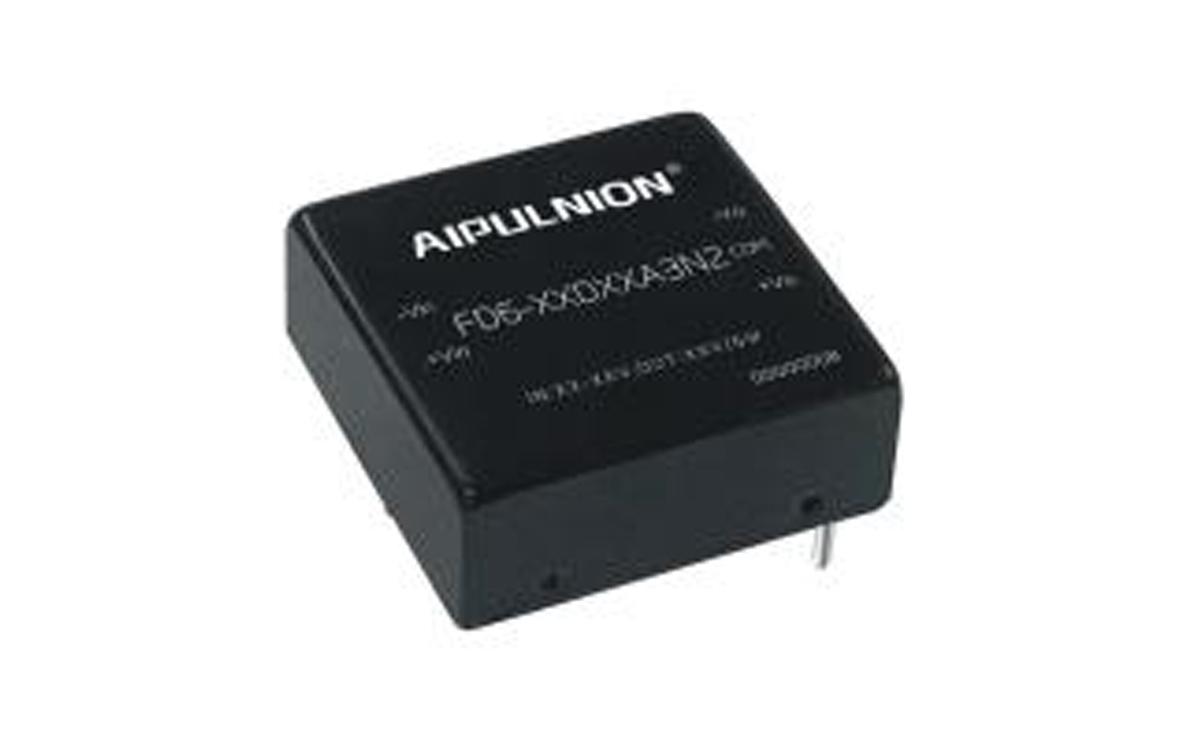

FD6-XXDXXA3N2(-T)(-TS) 系列
-/9-75 -/1500 25.4*25.4*11.0
FD6-36D24A3N2 6 -/18-75 86 -/1500 25.4*25.4*11.0 -
FD6-36D15A3N2 6 -/18-75 88 -/1500 25.4*25.4*11.0 -
FD6-36D12A3N2 6 -/18-75 86 -/1500 25.4*25.4*11.0 -
FD6-36D09A3N2 6 -/18-75 86 -/1500 25.4*25.4*11.0 -
FD6-36D05A3N2 6 -/18-75 84 -/1500 25.4*25.4*11.0 -
FD6-36D3V3A3N2 6 -/18-75 82 -/1500 25.4*25.4*11.0 -
FD6-18D24A3N2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
FD6-18D15A3N2 6 -/9-36 87 -/1500 25.4*25.4*11.0 -
FD6-18D12A3N2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
FD6-18D09A3N2 6 -/9-36 86 -/1500 25.4*25.4*11.0 -
FD6-18D05A3N2 6 -/9-36 84 -/1500 25.4*25.4*11.0 -
FD6-18D3V3A3N2 6 -/9-36 78 -/1500 25.4*25.4*11.0 -

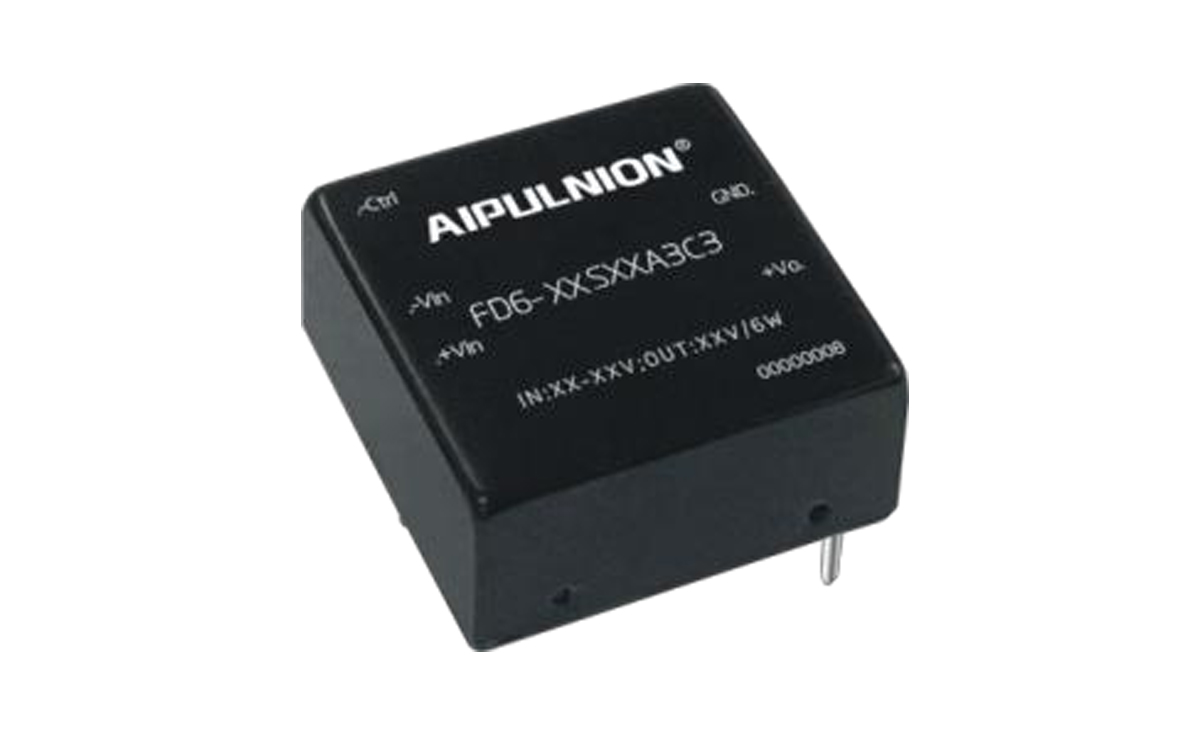

FD6-XXSXXA3C3(-T)(-TS) 系列
-/9-75 -/3000 25.4*25.4*11.0
FD6-36S24A3C3 6 -/18-75 84 -/3000 25.4*25.4*11.0 -
FD6-36S15A3C3 6 -/18-75 84 -/3000 25.4*25.4*11.0 -
FD6-36S12A3C3 6 -/18-75 84 -/3000 25.4*25.4*11.0 -
FD6-36S09A3C3 6 -/18-75 82 -/3000 25.4*25.4*11.0 -
FD6-36S05A3C3 6 -/18-75 81 -/3000 25.4*25.4*11.0 -
FD6-36S3V3A3C3 6 -/18-75 76 -/3000 25.4*25.4*11.0 -
FD6-18S24A3C3 6 -/9-36 85 -/3000 25.4*25.4*11.0 -
FD6-18S15A3C3 6 -/9-36 85 -/3000 25.4*25.4*11.0 -
FD6-18S12A3C3 6 -/9-36 85 -/3000 25.4*25.4*11.0 -
FD6-18S09A3C3 6 -/9-36 84 -/3000 25.4*25.4*11.0 -
FD6-18S05A3C3 6 -/9-36 83 -/3000 25.4*25.4*11.0 -
FD6-18S3V3A3C3 6 -/9-36 78 -/3000 25.4*25.4*11.0 -

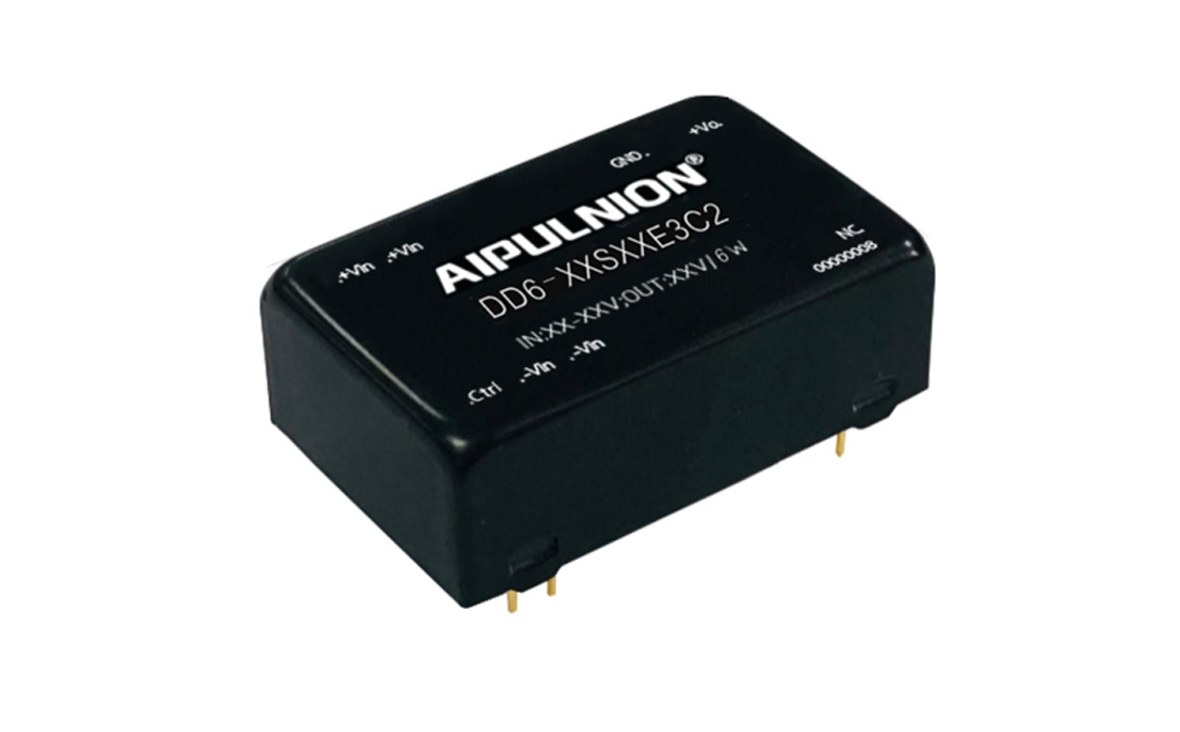

DD6-05SXXE3C2 系列
-/4.5-9 -/1500 31.8*20.3*12.0
DD6-05S24E3C2 6 -/4.5-9 84 -/1500 31.8*20.3*12.0 -
DD6-05S15E3C2 6 -/4.5-9 84 -/1500 31.8*20.3*12.0 -
DD6-05S12E3C2 6 -/4.5-9 84 -/1500 31.8*20.3*12.0 -
DD6-05S05E3C2 6 -/4.5-9 78 -/1500 31.8*20.3*12.0 -
DD6-36E0524G9N2 系列
-/18-75 -/2000 50.0*38.0*26.0
DD6-36E0524G9N2 6 -/18-75 81 -/2000 50.0*38.0*26.0 -
DD6-36E0524G9N2 6 -/18-75 81 -/2000 50.0*38.0*26.0 -

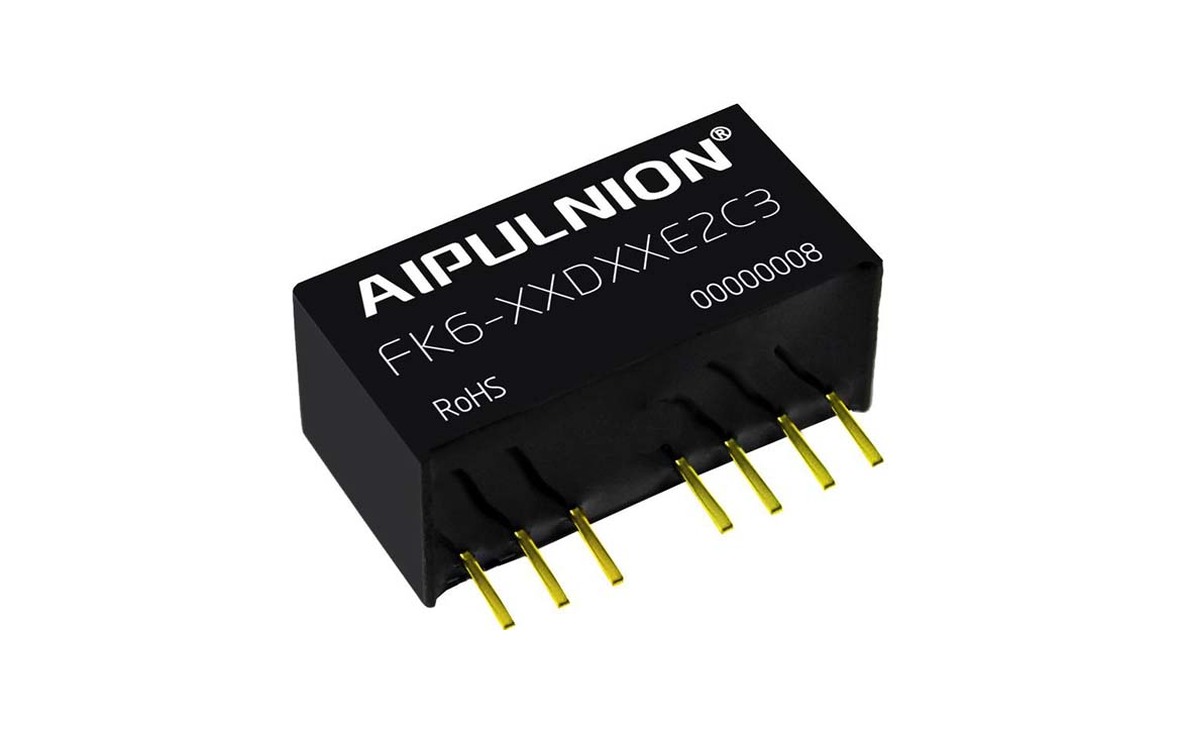

FK6-XXDXXE2C3 系列
-/9-36 -/3000 22.0*9.5*12.0
FK6-18D18E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D24E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 -
FK6-18D15E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D12E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D09E2C3 6 -/9-36 85 -/3000 22.0*9.5*12.0 -
FK6-18D05E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 -
PFD6-XXSXXE2N6系列
-/9-36 -/6000 31.6*20.3*10.2
PFD6-36S09E2N6 6 -/18-75 84 -/6000 31.6*20.3*10.2 -
PFD6-36S12E2N6 6 -/18-75 85 -/6000 31.6*20.3*10.2 -
PFD6-36S15E2N6 6 -/18-75 86 -/6000 31.6*20.3*10.2 -
PFD6-36S24E2N6 6 -/18-75 85 -/6000 31.6*20.3*10.2 -
PFD6-36S05E2N6 6 -/18-75 82 -/6000 31.6*20.3*10.2 -
PFD6-18S18E2N6 6 -/9-36 86 -/6000 31.6*20.3*10.2 -
PFD6-18S06E2N6 6 -/9-36 82 -/6000 31.6*20.3*10.2 -
PFD6-18S05E2N6 6 -/9-36 81 -/6000 31.6*20.3*10.2 CE,RoHS
PFD6-18S24E2N6 6 -/9-36 85 -/6000 31.6*20.3*10.2 CE,RoHS
PFD6-18S09E2N6 6 -/9-36 84 -/6000 31.6*20.3*10.2 CE,RoHS
PFD6-18S12E2N6 6 -/9-36 85 -/6000 31.6*20.3*10.2 CE,RoHS
PFD6-18S15E2N6 6 -/9-36 86 -/6000 31.6*20.3*10.2 CE,RoHS

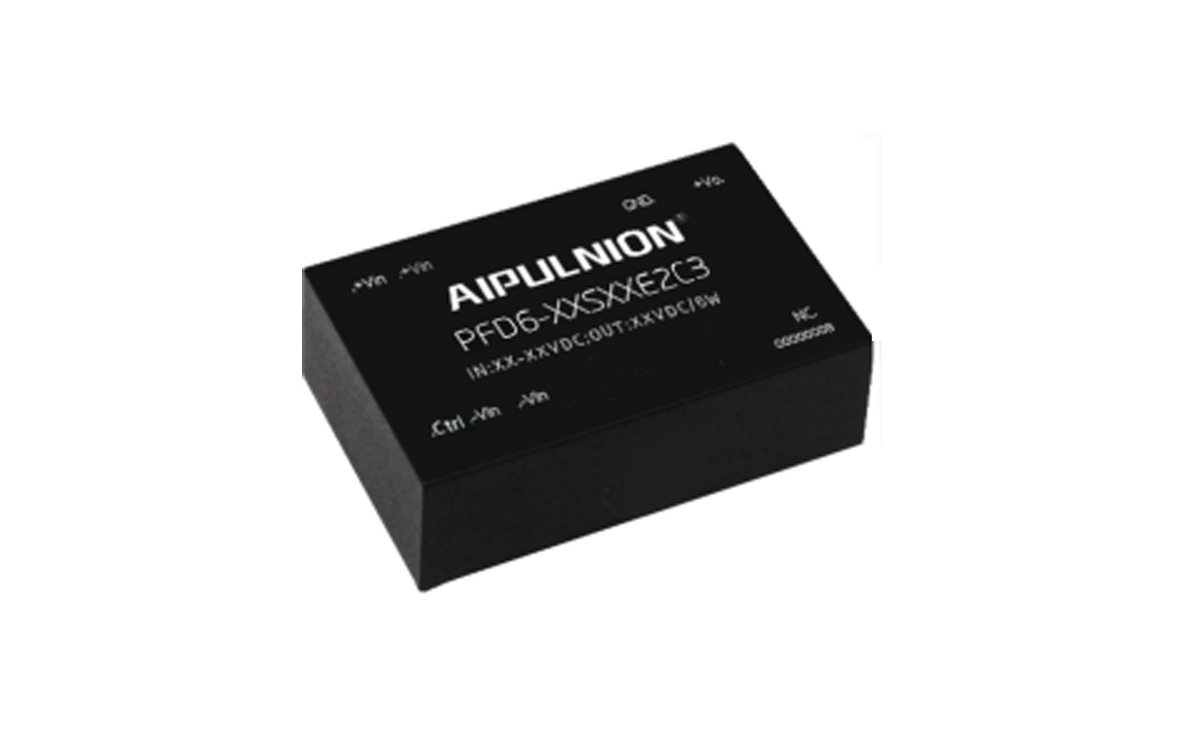

PFD6-XXS&DXXE2(C)3 系列
-/9-75 -/3000 31.6*20.3*10.2
PFD6-18D18E2(C)3 6 -/9-36 86 -/3000 31.6*20.3*10.2 -
PFD6-36D24E2(C)3 6 -/18-75 86 -/3000 31.6*20.3*10.2 -
PFD6-36D15E2(C)3 6 -/18-75 88 -/3000 31.6*20.3*10.2 -
PFD6-36D12E2(C)3 6 -/18-75 87 -/3000 31.6*20.3*10.2 -
PFD6-36D09E2(C)3 6 -/18-75 84 -/3000 31.6*20.3*10.2 -
PFD6-36D05E2(C)3 6 -/18-75 83 -/3000 31.6*20.3*10.2 -
PFD6-36S24E2(C)3 6 -/18-75 87 -/3000 31.6*20.3*10.2 -
PFD6-36S15E2(C)3 6 -/18-75 88 -/3000 31.6*20.3*10.2 -
PFD6-36S12E2(C)3 6 -/18-75 87 -/3000 31.6*20.3*10.2 -
PFD6-36S09E2(C)3 6 -/18-75 85 -/3000 31.6*20.3*10.2 -
PFD6-36S05E2(C)3 6 -/18-75 84 -/3000 31.6*20.3*10.2 -
PFD6-36S3V3E2(C)3 6 -/18-75 80 -/3000 31.6*20.3*10.2 -
PFD6-18D24E2(C)3 6 -/9-36 86 -/3000 31.6*20.3*10.2 -
PFD6-18D15E2(C)3 6 -/9-36 86 -/3000 31.6*20.3*10.2 -
PFD6-18D12E2(C)3 6 -/9-36 85 -/3000 31.6*20.3*10.2 -
PFD6-18D09E2(C)3 6 -/9-36 84 -/3000 31.6*20.3*10.2 -
PFD6-18D05E2(C)3 6 -/9-36 82 -/3000 31.6*20.3*10.2 -
PFD6-18S25E2(C)3 6 -/9-36 85 -/3000 31.6*20.3*10.2 -
PFD6-18S24E2(C)3 6 -/9-36 86 -/3000 31.6*20.3*10.2 -
PFD6-18S15E2(C)3 6 -/9-36 86 -/3000 31.6*20.3*10.2 -
PFD6-18S12E2(C)3 6 -/9-36 85 -/3000 31.6*20.3*10.2 -
PFD6-18S09E2(C)3 6 -/9-36 84 -/3000 31.6*20.3*10.2 -
PFD6-18S05E2(C)3 6 -/9-36 83 -/3000 31.6*20.3*10.2 -
PFD6-18S3V3E2(C)3 6 -/9-36 77 -/3000 31.6*20.3*10.2 -

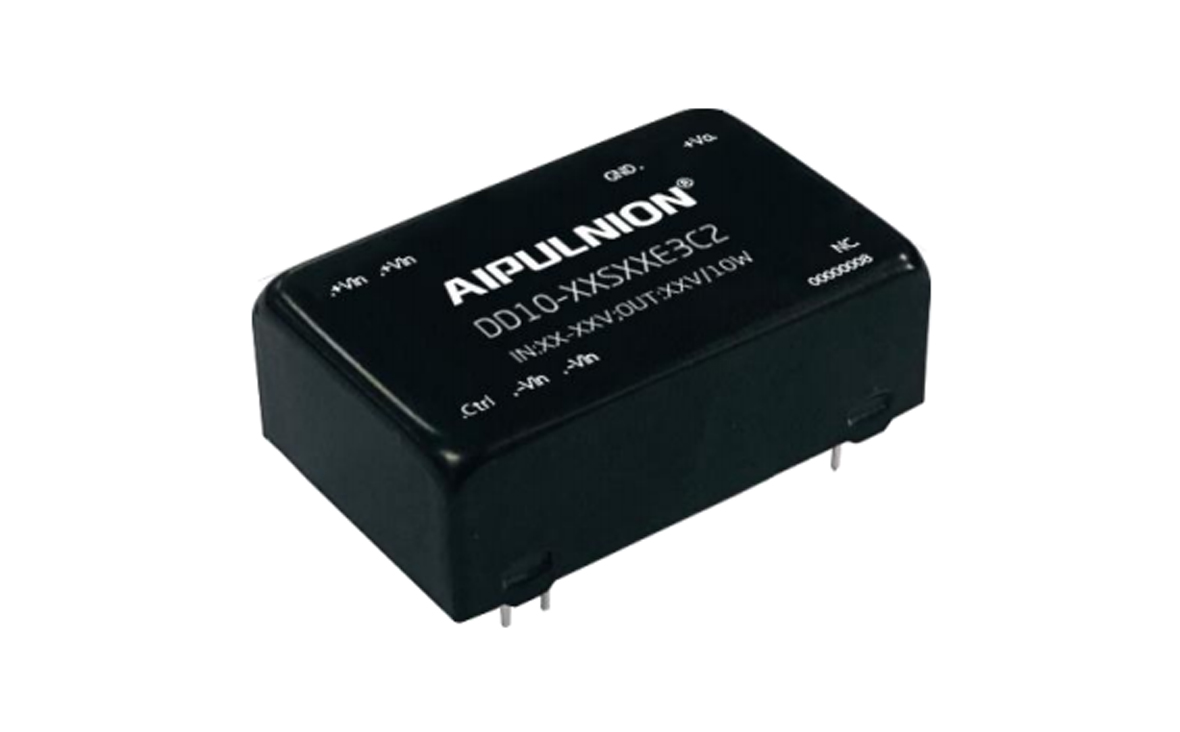

DD10-XXSXXE3C2 系列
-/9-75 -/1500 31.8*20.3*12.0
DD10-36S24E3C2 10 -/18-75 88 -/1500 31.8*20.3*12.0 -
DD10-36S15E3C2 10 -/18-75 87 -/1500 31.8*20.3*12.0 -
DD10-36S12E3C2 10 -/18-75 87 -/1500 31.8*20.3*12.0 -
DD10-36S05E3C2 10 -/18-75 87 -/1500 31.8*20.3*12.0 -
DD10-36S3V3E3C2 10 -/18-75 86 -/1500 31.8*20.3*12.0 -
DD10-18S24E3C2 10 -/9-36 88 -/1500 31.8*20.3*12.0 -
DD10-18S15E3C2 10 -/9-36 87 -/1500 31.8*20.3*12.0 -
DD10-18S12E3C2 10 -/9-36 87 -/1500 31.8*20.3*12.0 -
DD10-18S05E3C2 10 -/9-36 87 -/1500 31.8*20.3*12.0 -
DD10-18S3V3E3C2 10 -/9-36 86 -/1500 31.8*20.3*12.0 -

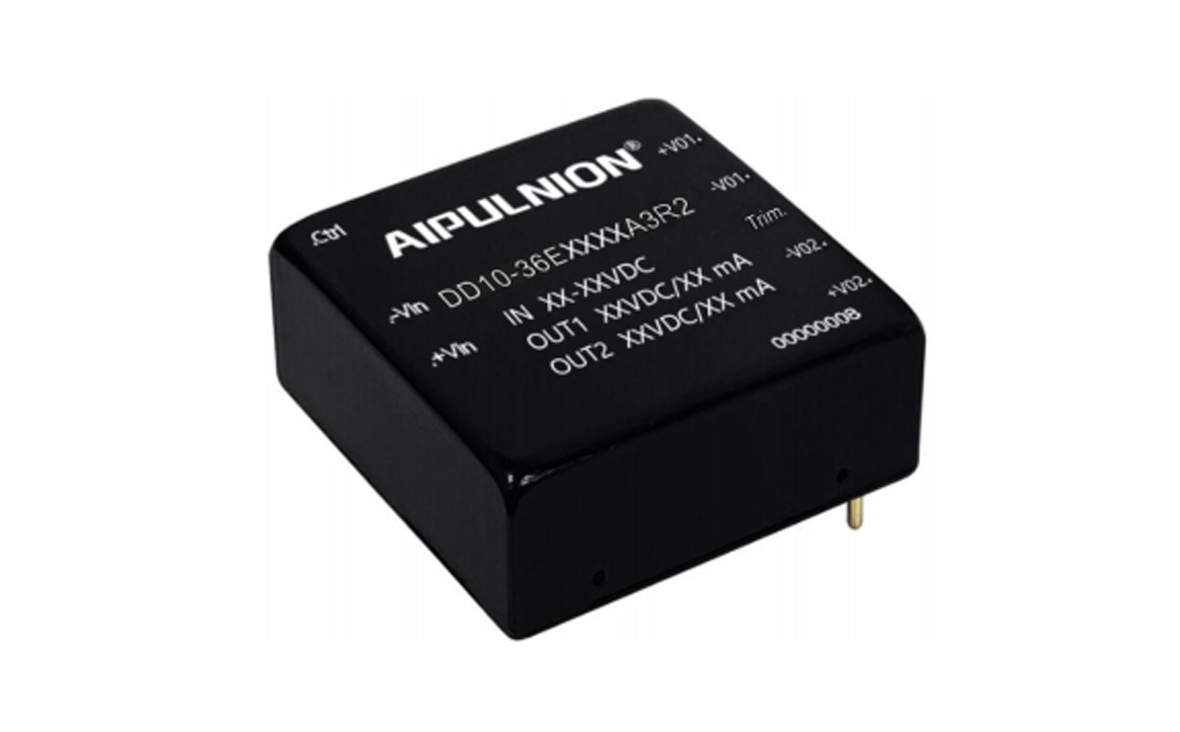

DD10-36EXXXXA3R2 系列
-/18-75 -/1500 25.4*25.4*12.5
DD10-36E0524A3R2 10 -/18-75 85 -/1500 25.4*25.4*12.5 -
DD10-36E0512A3R2 10 -/18-75 85 -/1500 25.4*25.4*12.5 -
DD10-36E0505A3R2 10 -/18-75 84 -/1500 25.4*25.4*12.5 -

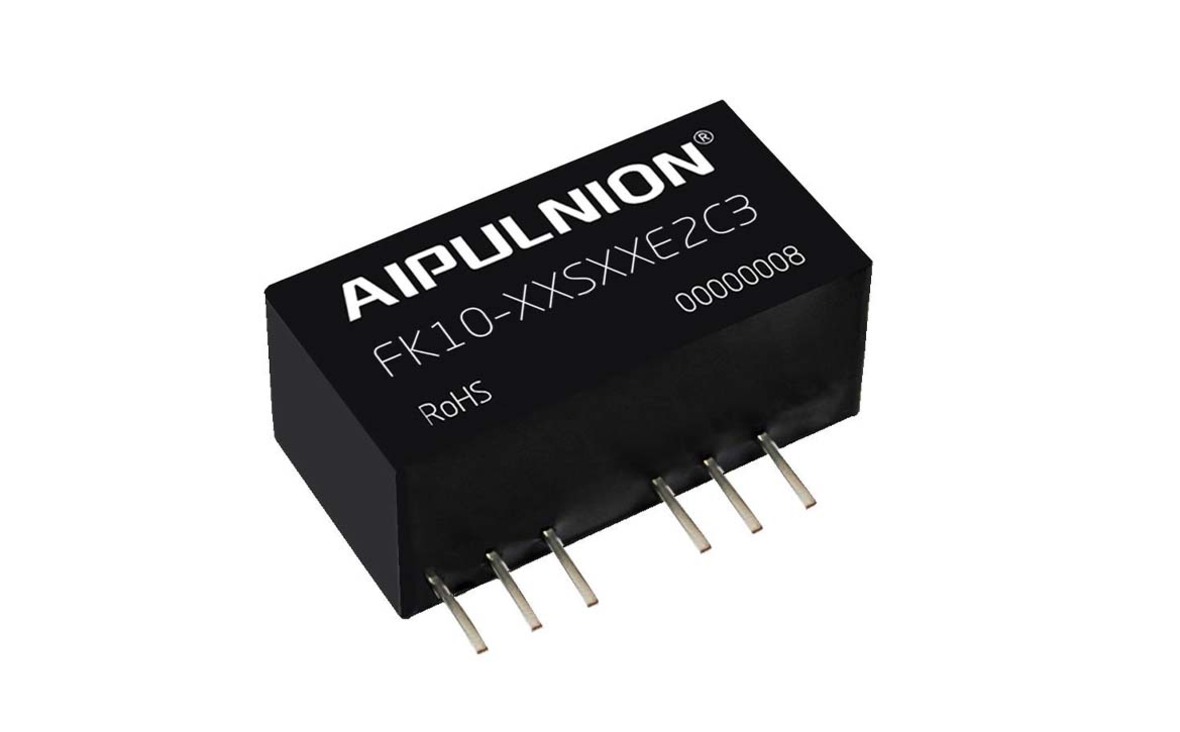

FK10-XXSXXE2C3 系列
-/9-72 -/2250 22.0*9.5*12.0
FK10-18S18E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S24E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S15E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S12E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S09E2C3 10 -/18-72 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S05E2C3 10 -/18-72 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S3V3E2C3 10 -/18-72 84 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S24E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S15E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S12E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S09E2C3 10 -/9-36 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S05E2C3 10 -/9-36 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S3V3E2C3 10 -/9-36 84 -/2250 22.0*9.5*12.0 CE,RoHS
DD10-XXDXXE3(C)2 系列
-/9-75 -/1500 31.8*20.3*12.0
DD10-48D15E3(C)2 10 -/36-75 87 -/1500 31.8*20.3*12.0 -
DD10-48D12E3(C)2 10 -/36-75 87 -/1500 31.8*20.3*12.0 -
DD10-24D12E3(C)2 10 -/18-36 87 -/1500 31.8*20.3*12.0 -
DD10-12D15E3(C)2 10 -/9-18 86 -/1500 31.8*20.3*12.0 -
DD10-12D05E3(C)2 10 -/9-18 83 -/1500 31.8*20.3*12.0 -
FD12-XXSXXA3(C)4(-T)(-TS) 系列
-/9-75 2150/- 25.4*25.4*11.0
FD12-36S24A3(C)4 12 -/18-75 88 2150/- 25.4*25.4*11.0 -
FD12-36S15A3(C)4 12 -/18-75 89 2150/- 25.4*25.4*11.0 -
FD12-36S12A3(C)4 12 -/18-75 87 2150/- 25.4*25.4*11.0 -
FD12-36S09A3(C)4 12 -/18-75 86 2150/- 25.4*25.4*11.0 -
FD12-36S05A3(C)4 12 -/18-75 83 2150/- 25.4*25.4*11.0 -
FD12-36S3V3A3(C)4 12 -/18-75 78 2150/- 25.4*25.4*11.0 -
FD12-18S24A3(C)4 12 -/9-36 88 2150/- 25.4*25.4*11.0 -
FD12-18S15A3(C)4 12 -/9-36 88 2150/- 25.4*25.4*11.0 -
FD12-18S12A3(C)4 12 -/9-36 87 2150/- 25.4*25.4*11.0 -
FD12-18S09A3(C)4 12 -/9-36 85 2150/- 25.4*25.4*11.0 -
FD12-18S05A3(C)4 12 -/9-36 83 2150/- 25.4*25.4*11.0 -
FD12-18S3V3A3(C)4 12 -/9-36 81 2150/- 25.4*25.4*11.0 -
FD12-110DXXA3N3 系列
-/40 -160 1500/- 25.4*25.4*12.5
FD12-110D24A3N3 12 -/40 -160 86 1500/- 25.4*25.4*12.5 -
FD12-110D15A3N3 12 -/40 -160 85 1500/- 25.4*25.4*12.5 -
FD12-110D12A3N3 12 -/40 -160 84 1500/- 25.4*25.4*12.5 -
FD12-110D09A3N3 12 -/40 -160 83 1500/- 25.4*25.4*12.5 -
FD12-110D05A3N3 12 -/40 -160 82 1500/- 25.4*25.4*12.5 -
FD12-110D3V3A3N3 12 -/40 -160 80 1500/- 25.4*25.4*12.5 -

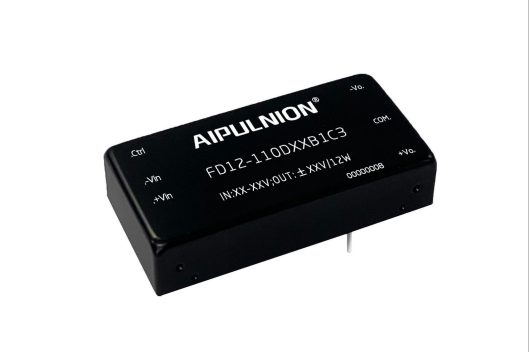

FD12-110DXXB1C3 系列
-/40 -160 -/2250 50.8*25.4*11.2
FD12-110D24B1C3 12 -/40 -160 88 -/2500 50.8*25.4*11.2 -
FD12-110D15B1C3 12 -/40 -160 89 -/2250 50.8*25.4*11.2 -
FD12-110D12B1C3 12 -/40 -160 88 -/2250 50.8*25.4*11.2 -
FD12-110D09B1C3 12 -/40 -160 87 -/2500 50.8*25.4*11.2 -
FD12-110D05B1C3 12 -/40 -160 86 -/2250 50.8*25.4*11.2 -
FD12-110D3V3B1C3 12 -/40 -160 84 -/2250 50.8*25.4*11.2 -

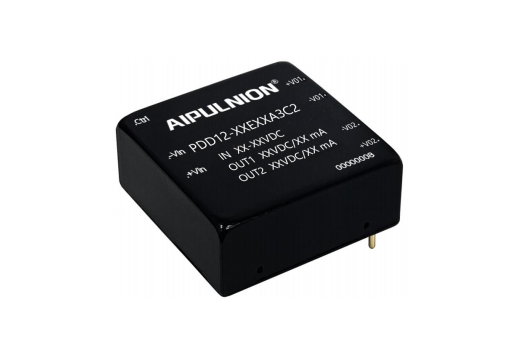

PDD12-XXEXXA3(C)2 系列
-/9-36 -/1500 25.4*25.4*13.0
PDD12-18E0507A3C2 12 -/9-36 86 -/1500 25.4*25.4*13.0 -
PDD12-18E0507A3C2 12 -/9-36 86 -/1500 25.4*25.4*13.0 -

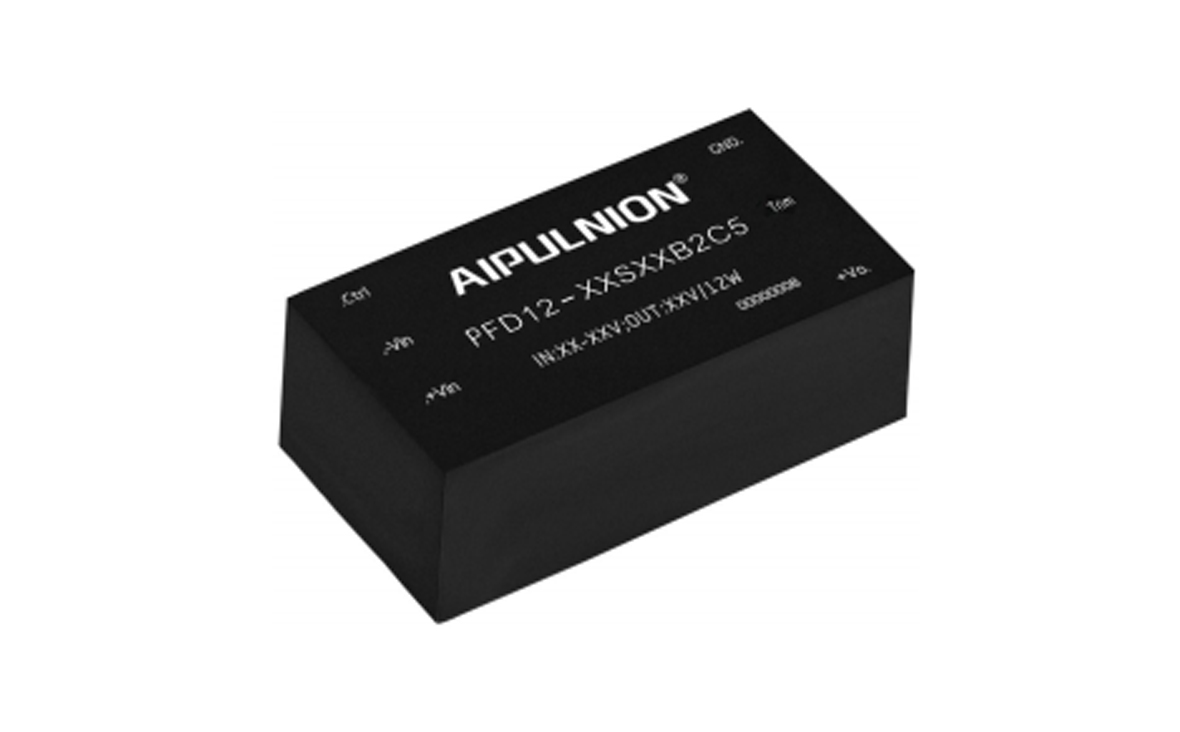

PFD12-XXSXXB2(C)5 系列
-/9-75 -/5000 50.8*25.4*15.6
PFD12-36S24B2(C)5 12 -/18-75 87 -/5000 50.8*25.4*15.6 -
PFD12-36S15B2(C)5 12 -/18-75 88 -/5000 50.8*25.4*15.6 -
PFD12-36S12B2(C)5 12 -/18-75 88 -/5000 50.8*25.4*15.6 -
PFD12-36S09B2(C)5 12 -/18-75 86 -/5000 50.8*25.4*15.6 -
PFD12-36S05B2(C)5 12 -/18-75 87 -/5000 50.8*25.4*15.6 -
PFD12-36S3V3B2(C)5 12 -/18-75 85 -/5000 50.8*25.4*15.6 -
PFD12-18S24B2(C)5 12 -/9-36 87 -/5000 50.8*25.4*15.6 -
PFD12-18S15B2(C)5 12 -/9-36 88 -/5000 50.8*25.4*15.6 -
PFD12-18S12B2(C)5 12 -/9-36 88 -/5000 50.8*25.4*15.6 -
PFD12-18S09B2(C)5 12 -/9-36 86 -/5000 50.8*25.4*15.6 -
PFD12-18S05B2(C)5 12 -/9-36 87 -/5000 50.8*25.4*15.6 -
PFD12-18S3V3B2(C)5 12 -/9-36 85 -/5000 50.8*25.4*15.6 -
FD12-110SXXA3N4 系列
-/40 -160 2100/- 25.4*25.4*12.5
FD12-110S24A3N4 12 -/40 -160 89 2100/- 25.4*25.4*12.5 -
FD12-110S15A3N4 12 -/40 -160 89 2100/- 25.4*25.4*12.5 -
FD12-110S12A3N4 12 -/40 -160 87 2100/- 25.4*25.4*12.5 -
FD12-110S09A3N4 12 -/40 -160 85 2100/- 25.4*25.4*12.5 -
FD12-110S05A3N4 12 -/40 -160 82 2100/- 25.4*25.4*12.5 -
FD12-110S3V3A3N4 12 -/40 -160 80 2100/- 25.4*25.4*12.5 -
FD12-110SXXA3(C)3 系列
-/40 -160 1500/- 25.4*25.4*12.5
FD12-110S24A3(C)3 12 -/40 -160 89 1500/- 25.4*25.4*12.5 -
FD12-110S15A3(C)3 12 -/40 -160 87 1500/- 25.4*25.4*12.5 -
FD12-110S12A3(C)3 12 -/40 -160 87 1500/- 25.4*25.4*12.5 -
FD12-110S09A3(C)3 12 -/40 -160 85 1500/- 25.4*25.4*12.5 -
FD12-110S05V2A3(C)3 12 -/40 -160 82 1500/- 25.4*25.4*12.5 -
FD12-110S05A3(C)3 12 -/40 -160 82 1500/- 25.4*25.4*12.5 -
FD12-110S3V3A3(C)3 12 -/40 -160 77 1500/- 25.4*25.4*12.5 -
PFD12-XXSXXA3C2-(XXX) 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD12-36S24A3(C)2 12 -/18-75 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S15A3(C)2 12 -/18-75 89 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S12A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S09A3(C)2 12 -/18-75 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S5V5A3(C)2 12 -/18-75 84 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S05A3(C)2 12 -/18-75 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S3V3A3(C)2 12 -/18-75 78 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S24A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S20A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S17A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S15A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S12A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S09A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S06A3(C)2 12 -/9-36 85 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S05A3(C)2 12 -/9-36 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S3V3A3(C)2 12 -/9-36 81 -/1500 25.4*25.4*11.0 CE,RoHS

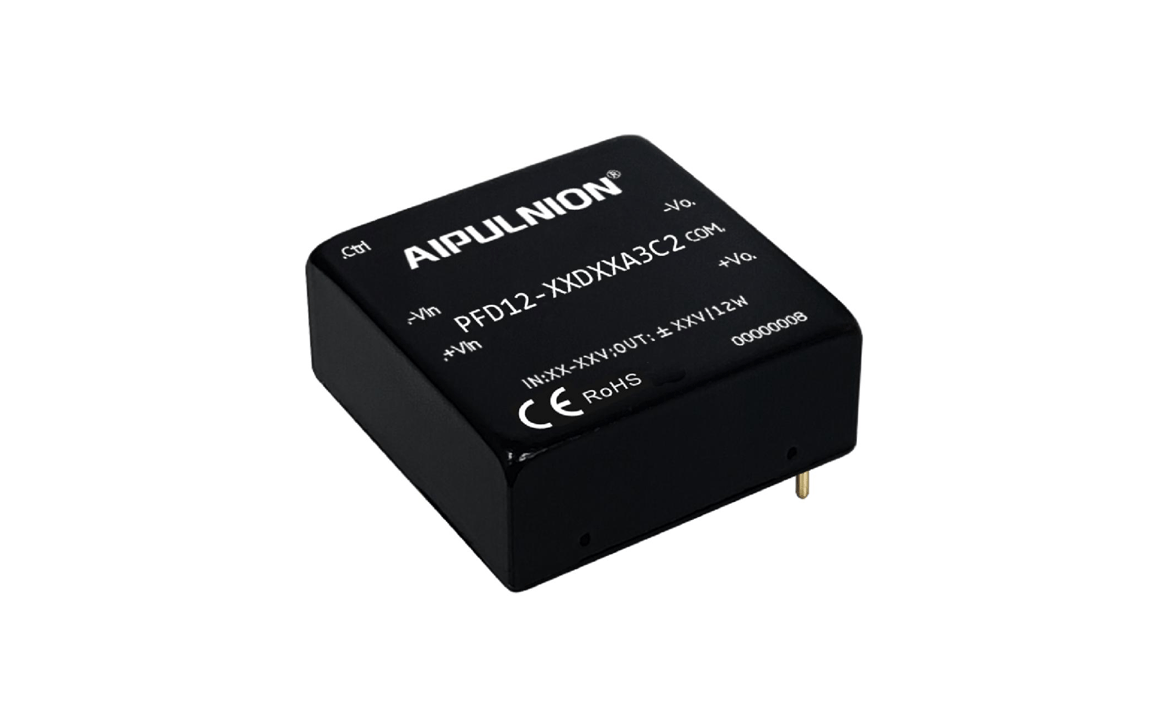

PFD12-XXDXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD12-36D24A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD12-36D15A3(C)2 12 -/18-75 88 -/1500 25.4*25.4*11.0 -
PFD12-36D12A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD12-36D09A3(C)2 12 -/18-75 85 -/1500 25.4*25.4*11.0 -
PFD12-36D05A3(C)2 12 -/18-75 84 -/1500 25.4*25.4*11.0 -
PFD12-18D24A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 -
PFD12-18D15A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 -
PFD12-18D12A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 -
PFD12-18D09A3(C)2 12 -/9-36 85 -/1500 25.4*25.4*11.0 -
PFD12-18D05A3(C)2 12 -/9-36 84 -/1500 25.4*25.4*11.0 -

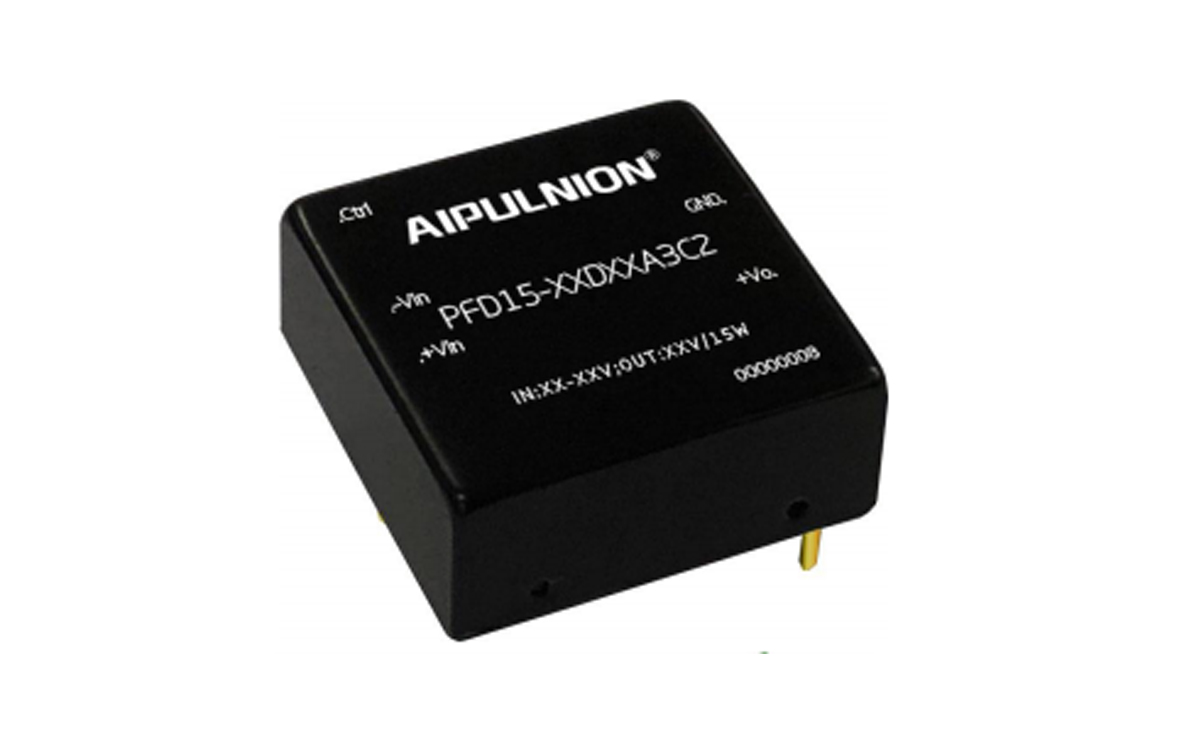

PFD15-XXDXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD15-36D09A3(C)2 15 -/18-75 86 -/1500 25.4*25.4*12.5 -
PFD15-18D09A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -
PFD15-18D12A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -
PFD15-36D24A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -
PFD15-36D15A3(C)2 15 -/18-75 89 -/1500 25.4*25.4*12.5 -
PFD15-36D12A3(C)2 15 -/18-75 89 -/1500 25.4*25.4*12.5 -
PFD15-36D05A3(C)2 15 -/18-75 86 -/1500 25.4*25.4*12.5 -
PFD15-18D24A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -
PFD15-18D15A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -
PFD15-18D05A3(C)2 15 -/9-36 87 -/1500 25.4*25.4*12.5 -

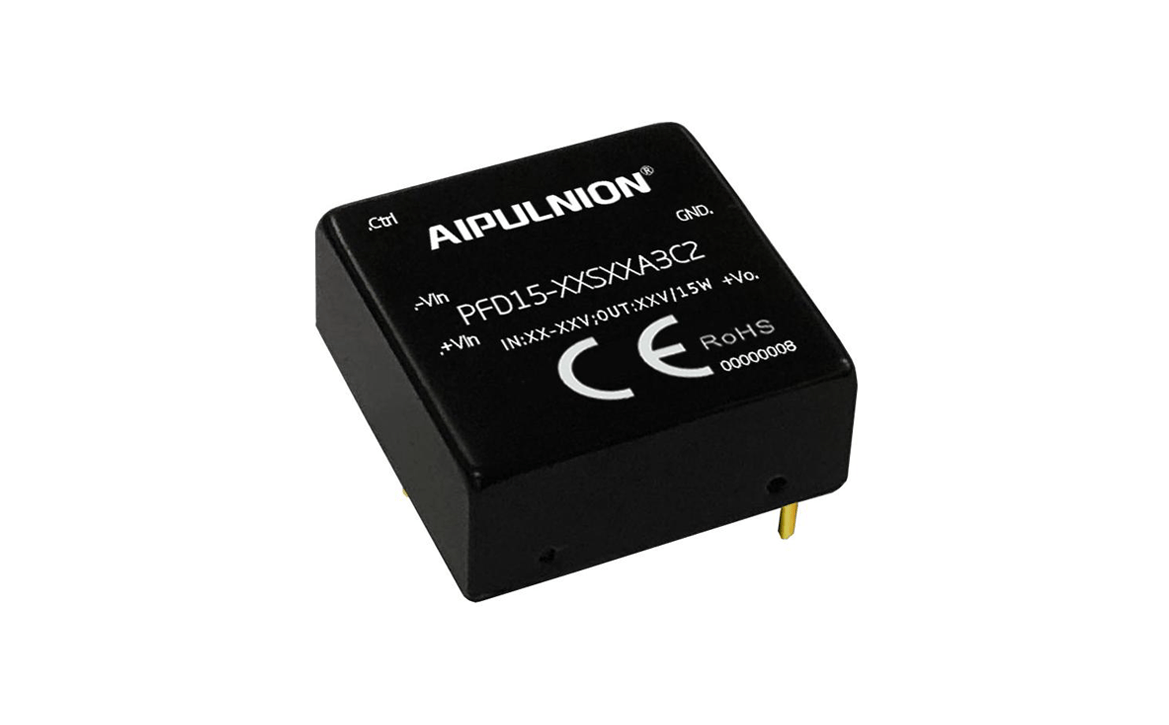

PFD15-XXSXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD15-18S12V2A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S04A3(C)2 15 -/9-36 89 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S24A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S15A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S12A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S09A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S05A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S3V3A3(C)2 15 -/18-75 88 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S24A3(C)2 15 -/9-36 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S15A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S12A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S09A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S05A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S3V3A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -,CE,RoHS
BK15-800SXXW2N6(-T)(-TS)(-TS1) 系列
-/200-1500 -/4000 89.0*63.5*25.0
BK15-800S24W2N6(-T)(-TS)(-TS1) 15 -/200-1500 85 -/4000 89.0*63.5*25.0 UL
BK15-800S15W2N6(-T)(-TS)(-TS1) 15 -/200-1500 83 -/4000 89.0*63.5*25.0 UL
BK15-800S12W2N6(-T)(-TS)(-TS1) 15 -/200-1500 82 -/4000 89.0*63.5*25.0 UL

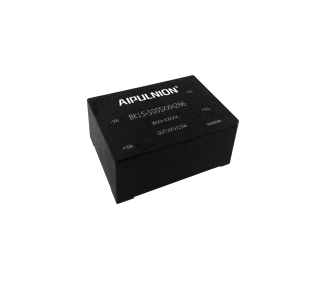

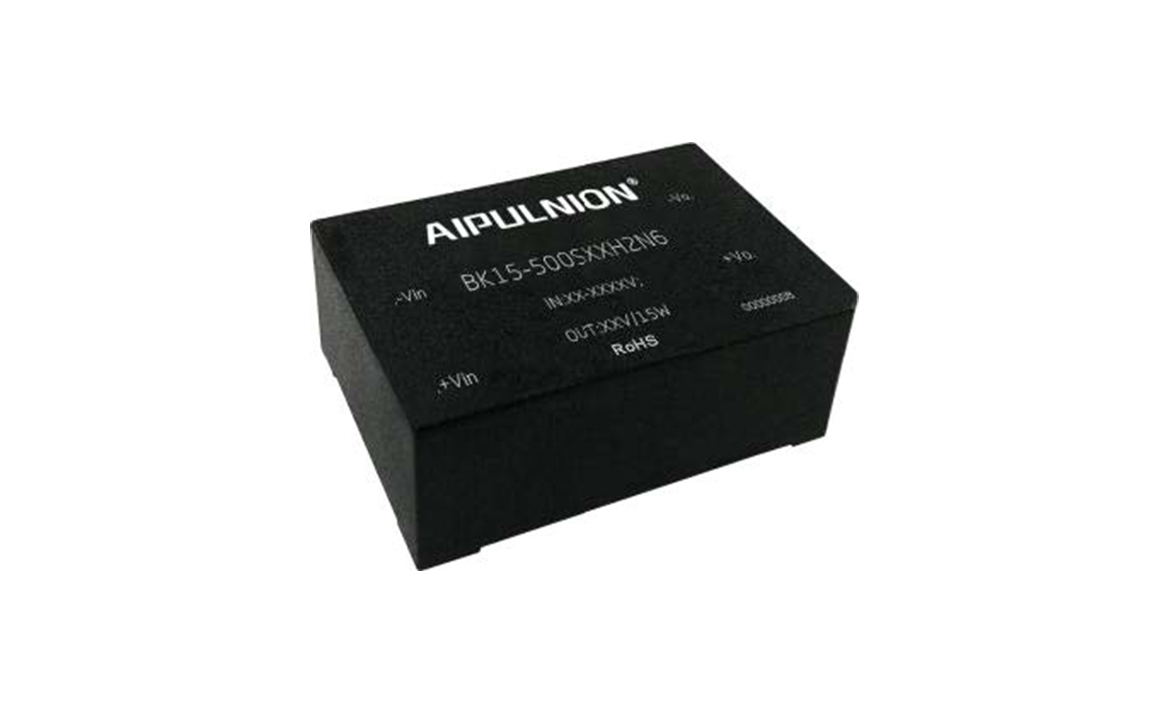

BK15-500SXXH2N6(-T)(-TS) 系列
-/100-1000 4000/- 70.0*48.0*23.5
BK15-500S24H2N6(-T)(-TS) 15 -/100-1000 85 4000/- 70.0*48.0*23.5 -
BK15-500S15H2N6(-T)(-TS) 15 -/100-1000 82 4000/- 70.0*48.0*23.5 -
BK15-500S12H2N6(-T)(-TS) 15 -/100-1000 82 4000/- 70.0*48.0*23.5 -

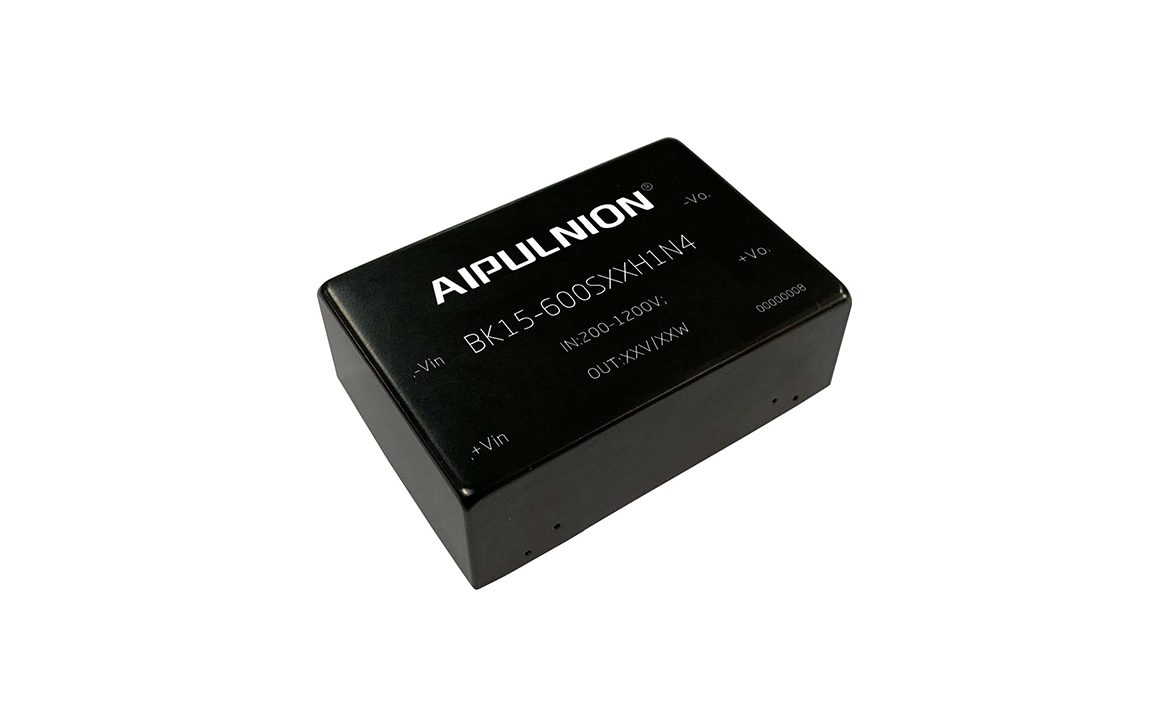

BK15-600SXXH1N4 系列
-/200-1200 4000/- 70.0*48.0*23.5
BK15-600S05H1N4 15 -/200-1200 75 4000/- 70.0*48.0*23.5 -
BK15-600S12H1N4 15 -/200-1200 77 4000/- 70.0*48.0*23.5 -
BK15-600S15H1N4 15 -/200-1200 78 4000/- 70.0*48.0*23.5 -
BK15-600S24H1N4 15 -/200-1200 80 4000/- 70.0*48.0*23.5 -

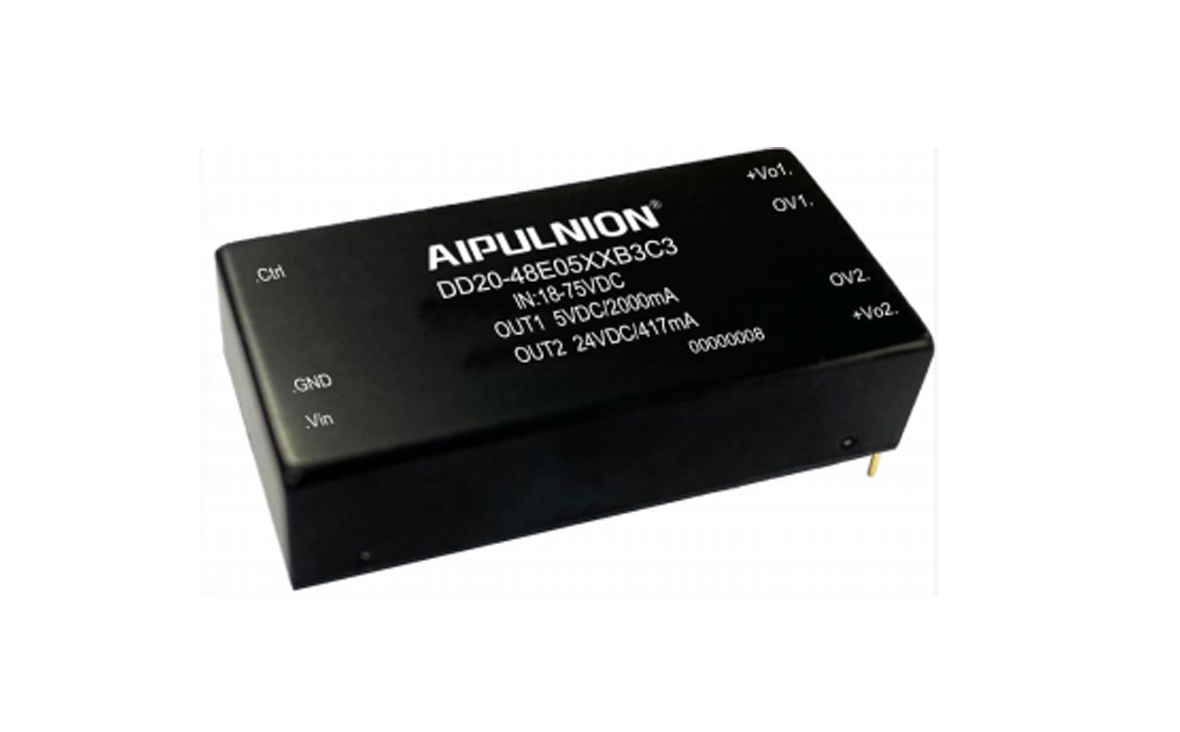

DD20-48E05XXB3C3 系列
-/18-75 -/3000 50.8*25.4*11.8
DD20-48E0524B3C3 20 -/18-75 85 -/3000 50.8*25.4*11.8 -
DD20-48E0512B3C3 20 -/18-75 85 -/3000 50.8*25.4*11.8 -
DD20-48E0505B3C3 20 -/18-75 85 -/3000 50.8*25.4*11.8 -

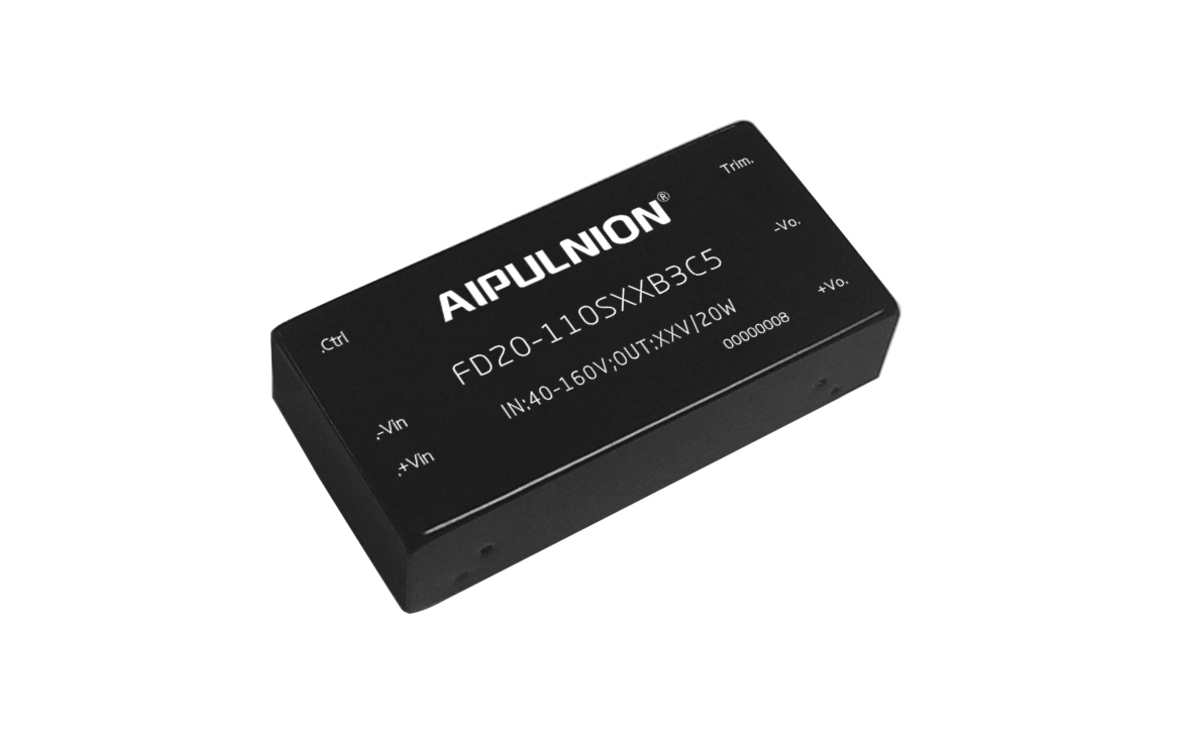

FD20-110SXXB3C3(-XXX)系列
-/40 -160 1500/2250 50.8*25.4*13.0
FD20-110S40B3C3 20 -/40 -160 88 1500/2250 50.8*25.4*13.0 -
FD20-110S24B3C3 20 -/40 -160 89 1500/2250 50.8*25.4*13.0 -
FD20-110S15B3C3 20 -/40 -160 89 1500/2250 50.8*25.4*13.0 -
FD20-110S12B3C3 20 -/40 -160 88 1500/2250 50.8*25.4*13.0 -
FD20-110S09B3C3 20 -/40 -160 89 1500/2250 50.8*25.4*13.0 -
FD20-110S05B3C3 20 -/40 -160 88 1500/2250 50.8*25.4*13.0 -
FD20-110S3V3B3C3 20 -/40 -160 86 1500/2250 50.8*25.4*13.0 -
BK20-500SXXH2N6 系列
-/200-820 4000/- 70.0*48.0*23.5
BK20-500S24H2N6 20 -/200-820 82 4000/- 70.0*48.0*23.5 -
BK20-500S15H2N6 20 -/200-820 81 4000/- 70.0*48.0*23.5 -
BK20-500S12H2N6 20 -/200-820 80 4000/- 70.0*48.0*23.5 -
