首页 > 产品中心 > DC-DC电源 > 中大功率（50-700W）
| 产品型号 | 图片 | 功率(W) | 输入电压(Vac/Vdc) | 输出电压(Vdc) | 效率(%) | 隔离电压(Vac/Vdc) | 封装尺寸(mm) | 认证/标准 | 规格书 3D图 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|
 |
-/80-750 | 4000/- | 109.0*58.5*30.0 |
|
||||||

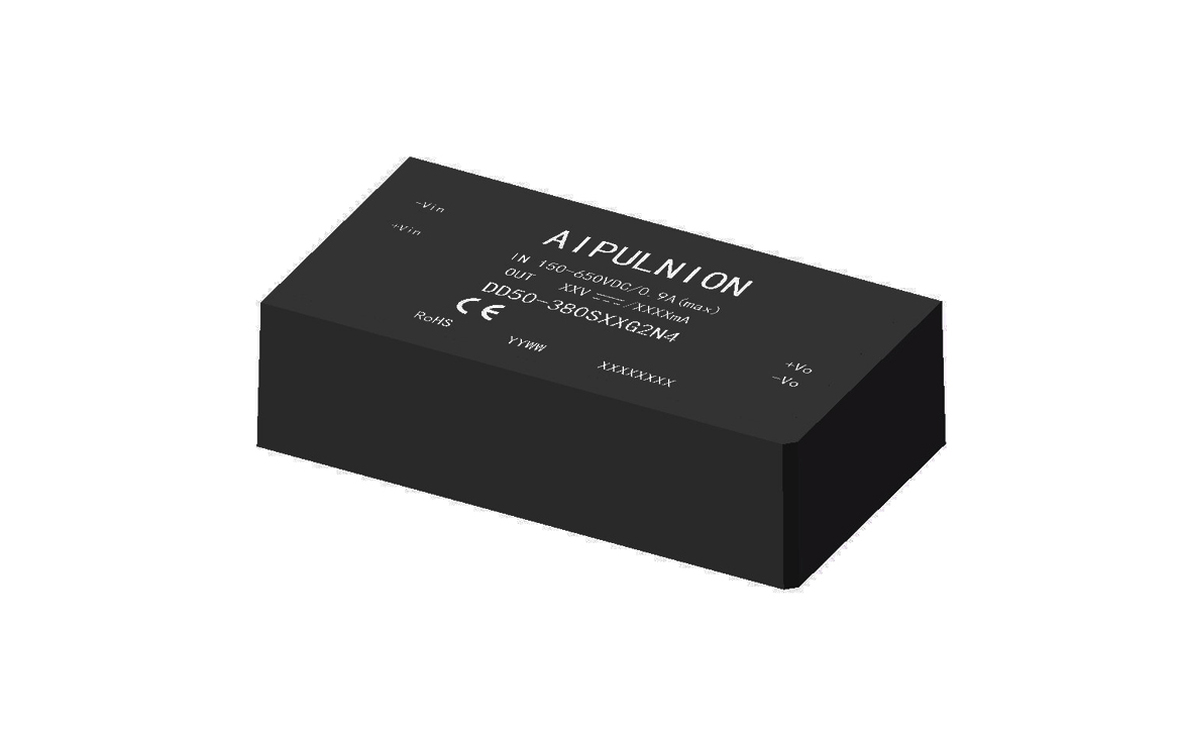

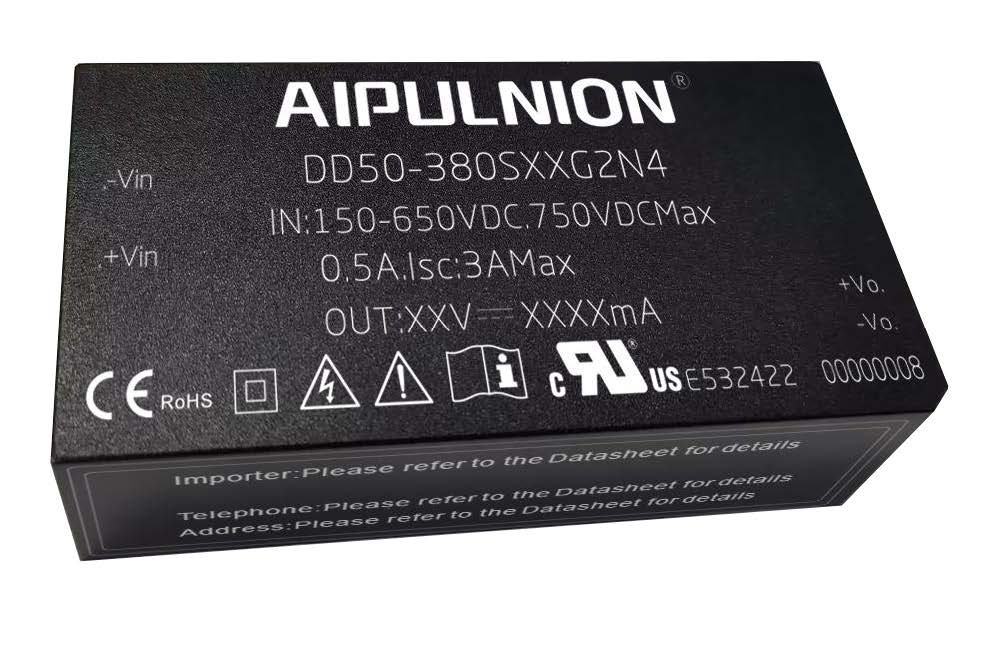

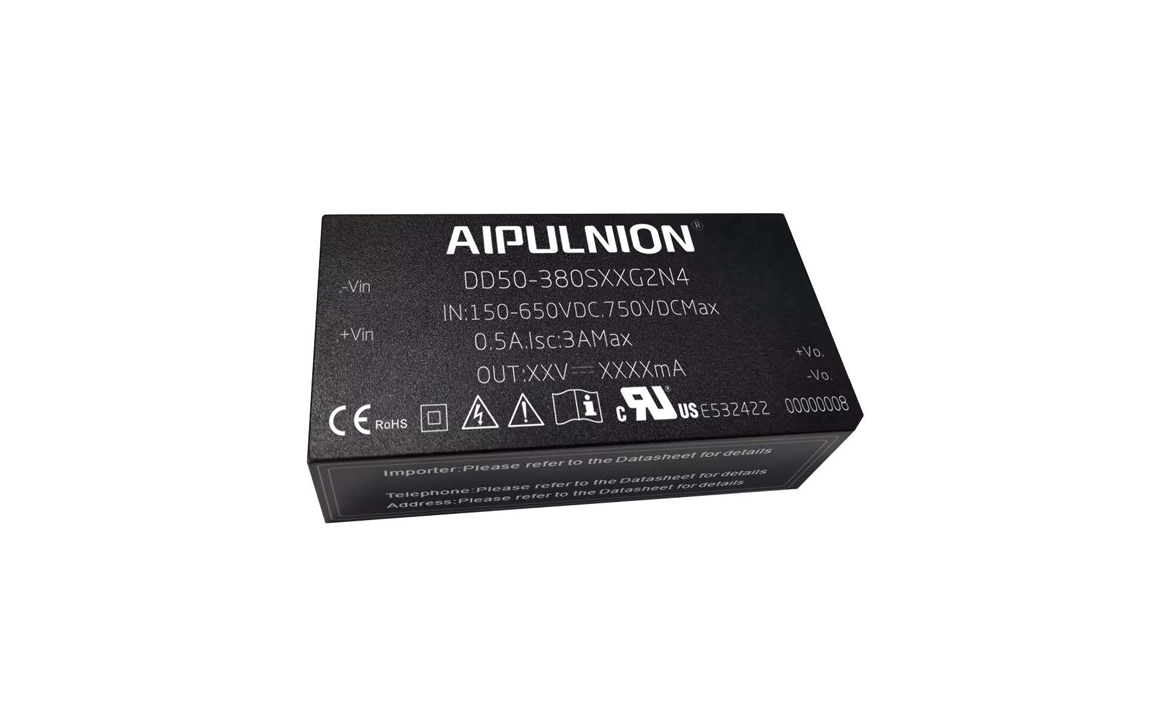

| DD50-380S24G2N4 | 50 | -/80-750 | 85 | 4000/- | 109.0*58.5*30.0 | - |
|
|||
| DD50-380S12G2N4 | 50 | -/80-750 | 83 | 4000/- | 109.0*58.5*30.0 | - |
|
|||
 |
-/40 -160 | 1500/3000 | 50.8*25.4*13.0 |
|
||||||
| FD50-110S48B3(C)3 | 50 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S24B3(C)3 | 50 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S15B3(C)3 | 50 | -/40 -160 | 88 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S12B3(C)3 | 50 | -/40 -160 | 88 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S05B3(C)3 | 50 | -/40 -160 | 86 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S3V3B3(C)3 | 50 | -/40 -160 | 85 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
 |
-/9-75 | -/1500 | 50.8*25.4*11.8 |
|
||||||

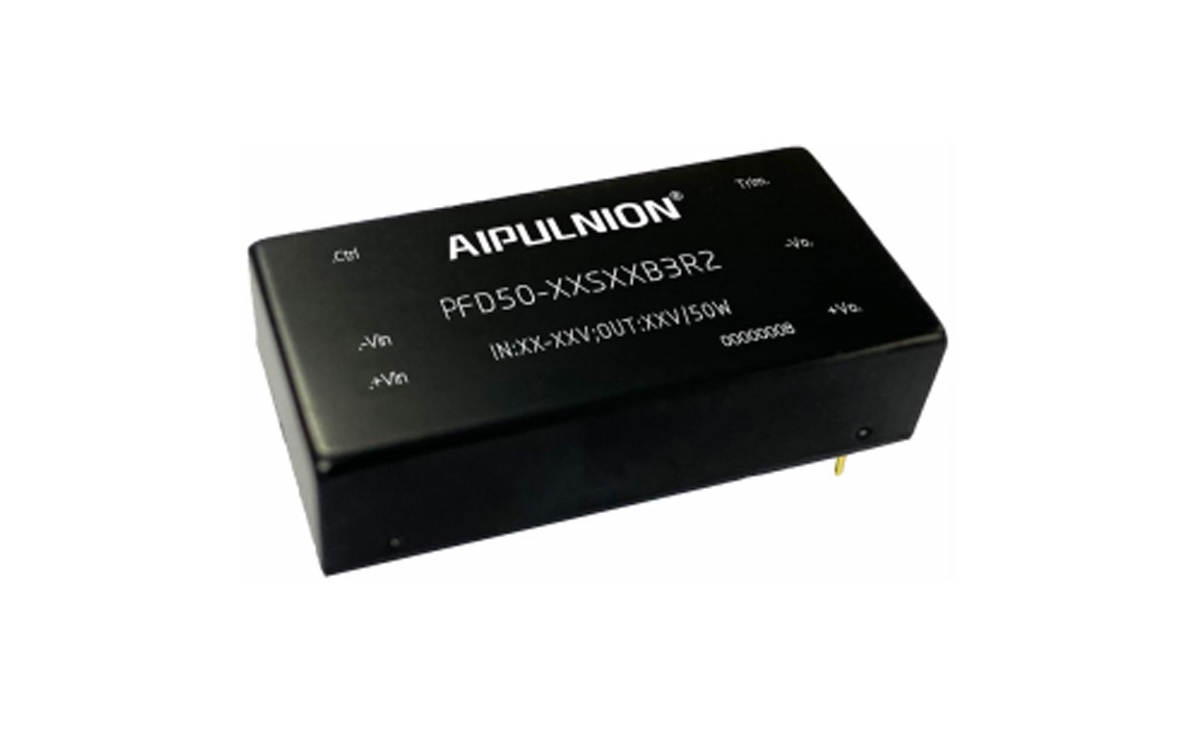

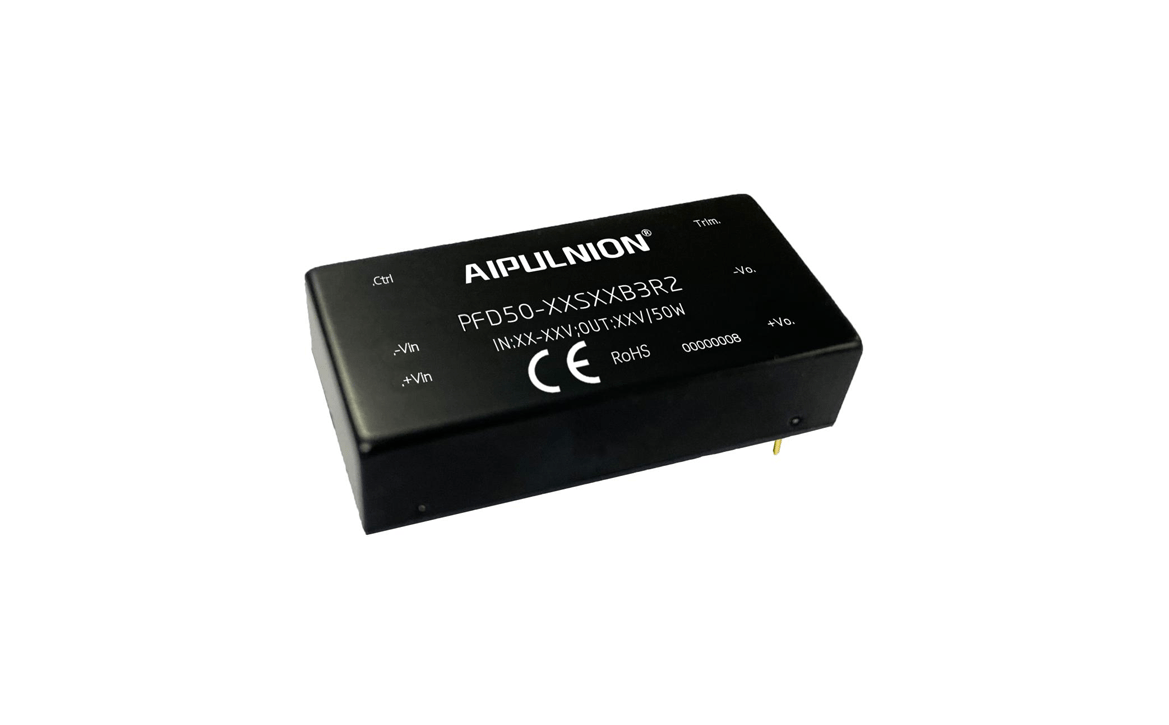

| PFD50-36S24B3R2 | 50 | -/18-75 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-36S15B3R2 | 50 | -/18-75 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-36S12B3R2 | 50 | -/18-75 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-36S05B3R2 | 50 | -/18-75 | 91 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-18S24B3R2 | 50 | -/9-36 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-18S15B3R2 | 50 | -/9-36 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-18S12B3R2 | 50 | -/9-36 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| PFD50-18S05B3R2 | 50 | -/9-36 | 91 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
 |
-/18-36 | -/1500 | 50.8*25.4*9.5 |
|
||||||
| FD50-48S24B3(C) | 50 | -/36-75 | 90 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-48S15B3(C) | 50 | -/36-75 | 90 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-48S12B3(C) | 50 | -/36-75 | 89 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-48S09B3(C) | 50 | -/36-75 | 88 | -/1500 | 50.8*25.4*9.5 | - |
|
|||
| FD50-48S05B3(C) | 50 | -/36-75 | 87 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-48S3V3B3(C) | 50 | -/36-75 | 87 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-24S24B3(C) | 50 | -/18-36 | 90 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-24S15B3(C) | 50 | -/18-36 | 90 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-24S12B3(C) | 50 | -/18-36 | 89 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-24S09B3(C) | 50 | -/18-36 | 88 | -/1500 | 50.8*25.4*9.5 | - |
|
|||
| FD50-24S05B3(C) | 50 | -/18-36 | 90 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
| FD50-24S3V3B3(C) | 50 | -/18-36 | 87 | -/1500 | 50.8*25.4*9.5 | CE,RoHS |
|
|||
 |
-/9-75 | -/1500 | 50.8*25.4*11.8 |
|
||||||

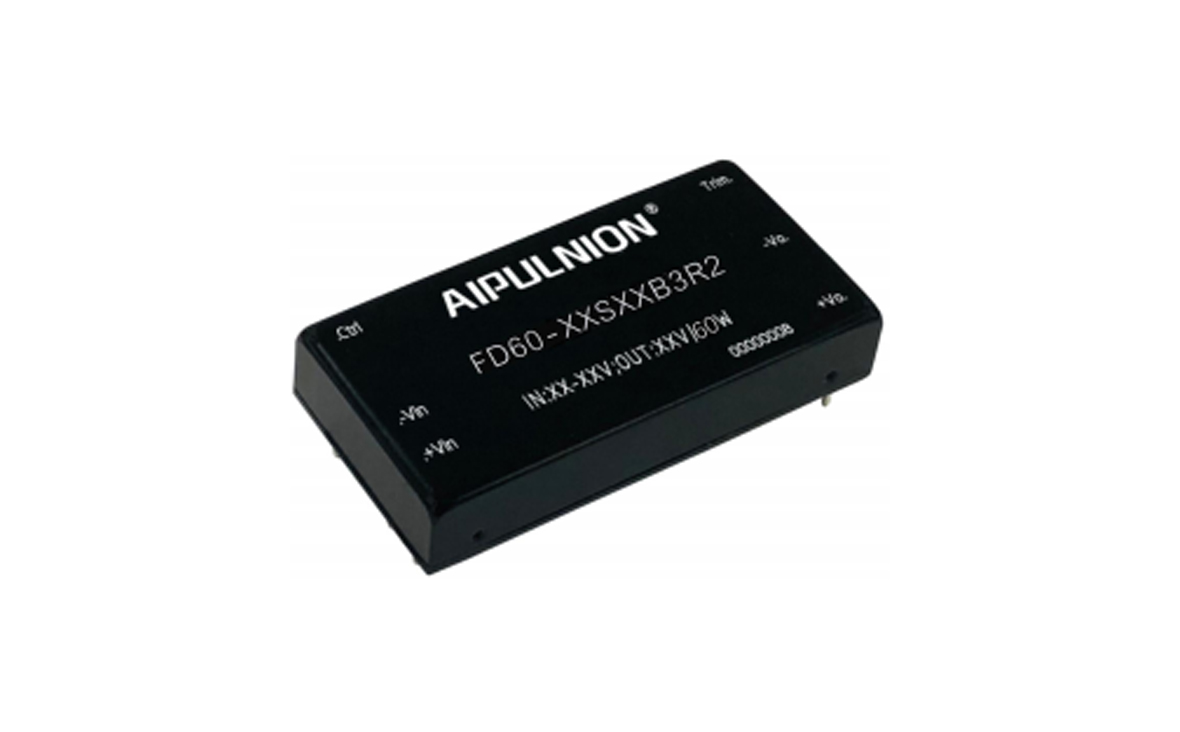

| FD60-36S24B3R2 | 60 | -/18-75 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-36S15B3R2 | 60 | -/18-75 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-36S12B3R2 | 60 | -/18-75 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-36S05B3R2 | 60 | -/18-75 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-18S24B3R2 | 60 | -/9-36 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-18S15B3R2 | 60 | -/9-36 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-18S12B3R2 | 60 | -/9-36 | 93 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD60-18S05B3R2 | 60 | -/9-36 | 92 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
 |
-/80-1000 | 4000/- | 140.0*70.0*42.0 |
|
||||||
| BK75-500S35G(A)1N6 | 75 | -/80-1000 | 89 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
| BK75-500S32G(A)1N6 | 75 | -/80-1000 | 89 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
| BK75-500S28G(A)1N6 | 75 | -/80-1000 | 89 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
| BK75-500S24G(A)1N6 | 75 | -/80-1000 | 89 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
| BK75-500S15G(A)1N6 | 75 | -/80-1000 | 87 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
| BK75-500S12G(A)1N6 | 75 | -/80-1000 | 87 | 4000/- | 140.0*70.0*42.0 | CE,TüV |
|
|||
 |
-/250-1500 | 4000/- | 168.0*111.2*42.5 |
|
||||||

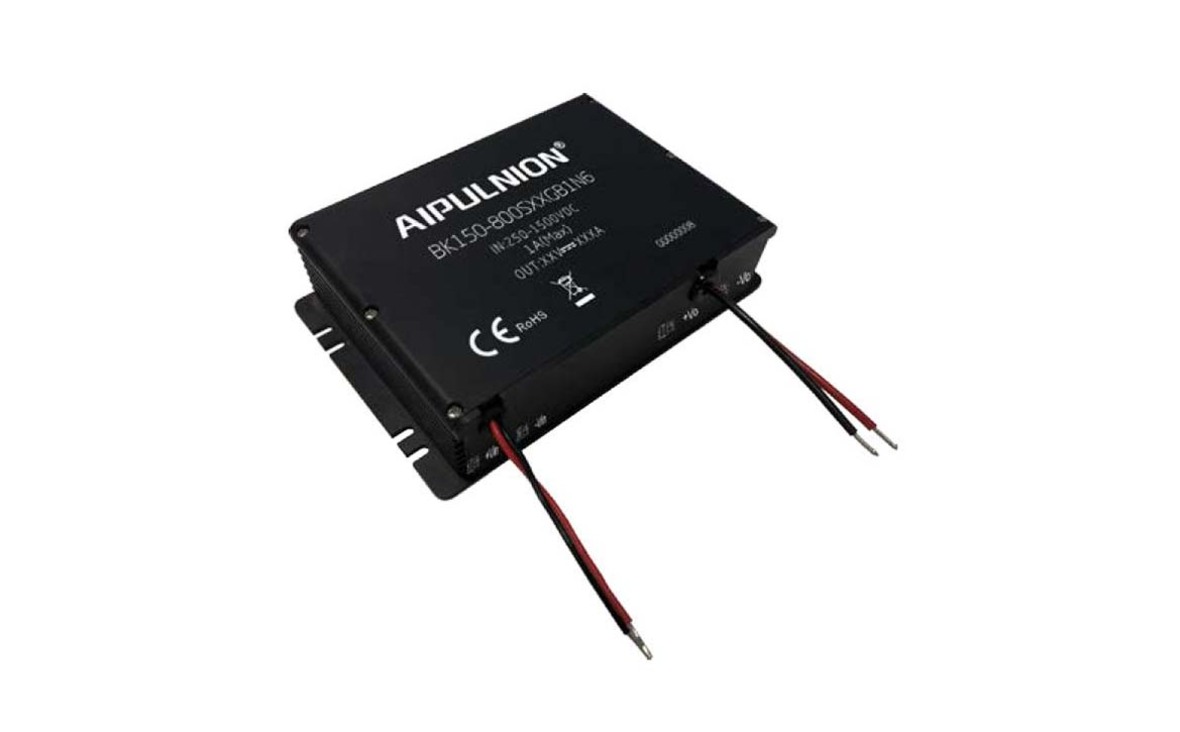

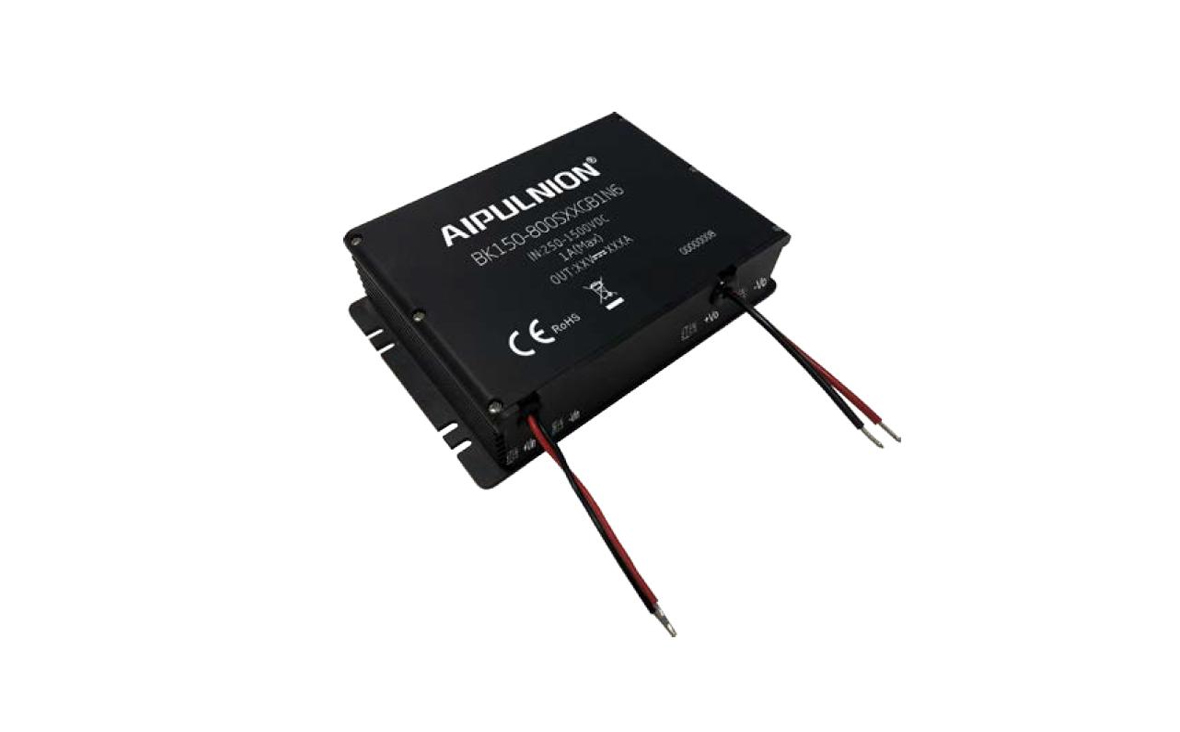

| BK150-800S24GB1D6(-1)(-2) | 150 | -/250-1500 | 88 | 4000/- | 168.0*111.2*42.5 | CE |
|
|||
| BK150-800S15GB1D6 | 150 | -/250-1500 | 87 | 4000/- | 168.0*111.2*42.5 | - |
|
|||
| BK150-800S28GB1D6 | 150 | -/250-1500 | 89 | 4000/- | 168.0*111.2*42.5 | CE |
|
|||
| BK150-800S12GB1D6 | 150 | -/250-1500 | 84 | 4000/- | 168.0*111.2*42.5 | CE |
|
|||
 |
-/200-1500 | 4000/- | 200.0*70.0*42.0 |
|
||||||
| BK150-S24M2 | 150 | -/200-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
| BK150-S28M2 | 150 | -/200-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
| BK150-S32M2 | 150 | -/200-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
| BK150-S32M2-L02 | 150 | -/200-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
 |
-/300-1500 | 4000/- | 215.0*125.0*50.0 |
|
||||||
| BK350-800S32G1N6 | 350 | -/300-1500 | 92 | 4000/- | 215.0*125.0*50.0 | - |
|
|||
| BK350-800S28G1N6 | 350 | -/300-1500 | 92 | 4000/- | 215.0*125.0*50.0 | - |
|
|||
| BK350-800S24G1N6 | 350 | -/300-1500 | 92 | 4000/- | 215.0*125.0*50.0 | - |
|
|||
 |
-/250-1500 | 4000/- | 200.0*70.0*42.0 |
|
||||||
| BK200-S24M2 | 200 | -/250-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
| BK200-S28M2 | 200 | -/250-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
|||
| BK200-S32M2 | 200 | -/250-1500 | 91 | 4000/- | 200.0*70.0*42.0 | - |
|
