首页 > 产品中心 > DC-DC电源 > 定压输入稳压输出S/DIP(0.75-2W)

定压输入稳压输出S/DIP(0.75-2W)

产品选型 >>
产品型号 图片 功率(W) 输入电压(Vac/Vdc) 输出电压(Vdc) 效率(%) 隔离电压(Vac/Vdc) 封装尺寸(mm) 认证/标准 规格书 3D图 样品申请
NWV75-XXSXXAN 系列
-/4.75-25.2 -/1500 11.5*6.0*10.0
NWV75-24S12AN 0.75 -/22.8-25.2 75 -/1500 11.5*6.0*10.0 -
NWV75-24S05AN 0.75 -/22.8-25.2 73 -/1500 11.5*6.0*10.0 -
NWV75-24S3V3AN 0.75 -/22.8-25.2 70 -/1500 11.5*6.0*10.0 -
NWV75-12S05AN 0.75 -/11.4-12.6 73 -/1500 11.5*6.0*10.0 -
NWV75-12S12AN 0.75 -/11.4-12.6 75 -/1500 11.5*6.0*10.0 -
NWV75-12S3V3AN 0.75 -/11.4-12.6 70 -/1500 11.5*6.0*10.0 -
NWV75-05S12AN 0.75 -/4.75-5.25 75 -/1500 11.5*6.0*10.0 -
NWV75-05S05AN 0.75 -/4.75-5.25 73 -/1500 11.5*6.0*10.0 -
NWV75-05S3V3AN 0.75 -/4.75-5.25 70 -/1500 11.5*6.0*10.0 -
NWV75-XXSXXBN 系列
-/4.75-5.25 -/1500 19.50* 6.00*10.10
NW75-05S05BN 0.75 -/4.75-5.25 72 -/1500 19.50* 6.00*10.10 -

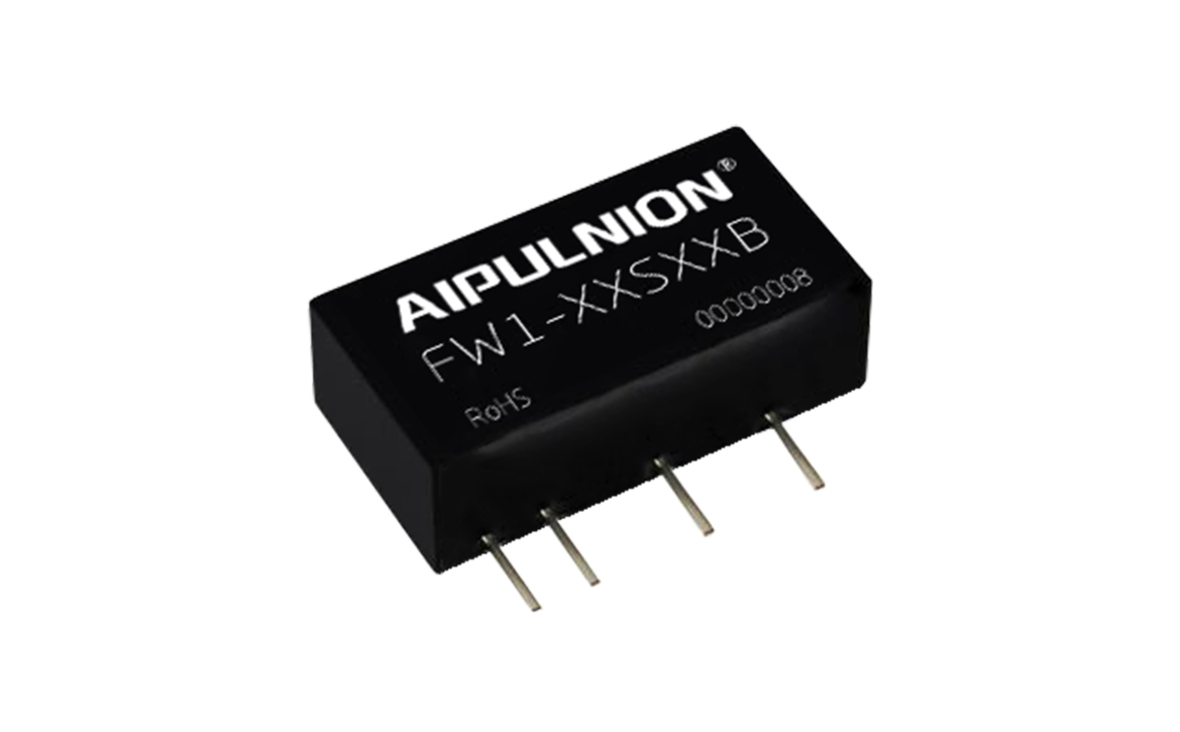

FW1-XXXXXB 系列
-/4.75-25.2 -/1500 19.5*6.0*10.0
FW1-12S09B 1 -/11.4-12.6 77 -/1500 19.5*6.0*10.0 -
FW1-24S24B 1 -/22.8-25.2 67 -/1500 19.5*6.0*10.0 -
FW1-24S15B 1 -/22.8-25.2 77 -/1500 19.5*6.0*10.0 -
FW1-24S12B 1 -/22.8-25.2 76 -/1500 19.5*6.0*10.0 -
FW1-24S05B 1 -/22.8-25.2 74 -/1500 19.5*6.0*10.0 -
FW1-15S15B 1 -/14.25-15.75 78 -/1500 19.5*6.0*10.0 -
FW1-15S05B 1 -/14.25-15.75 70 -/1500 19.5*6.0*10.0 -
FW1-12S24B 1 -/11.4-12.6 67 -/1500 19.5*6.0*10.0 -
FW1-12S15B 1 -/11.4-12.6 74 -/1500 19.5*6.0*10.0 -
FW1-12S12B 1 -/11.4-12.6 77 -/1500 19.5*6.0*10.0 -
FW1-12S05B 1 -/11.4-12.6 77 -/1500 19.5*6.0*10.0 -
FW1-05S24B 1 -/4.75-5.25 73 -/1500 19.5*6.0*10.0 -
FW1-05S12B 1 -/4.75-5.25 77 -/1500 19.5*6.0*10.0 -
FW1-05S12B 1 -/4.75-5.25 78 -/1500 19.5*6.0*10.0 -
FW1-05S05B 1 -/4.75-5.25 72 -/1500 19.5*6.0*10.0 -

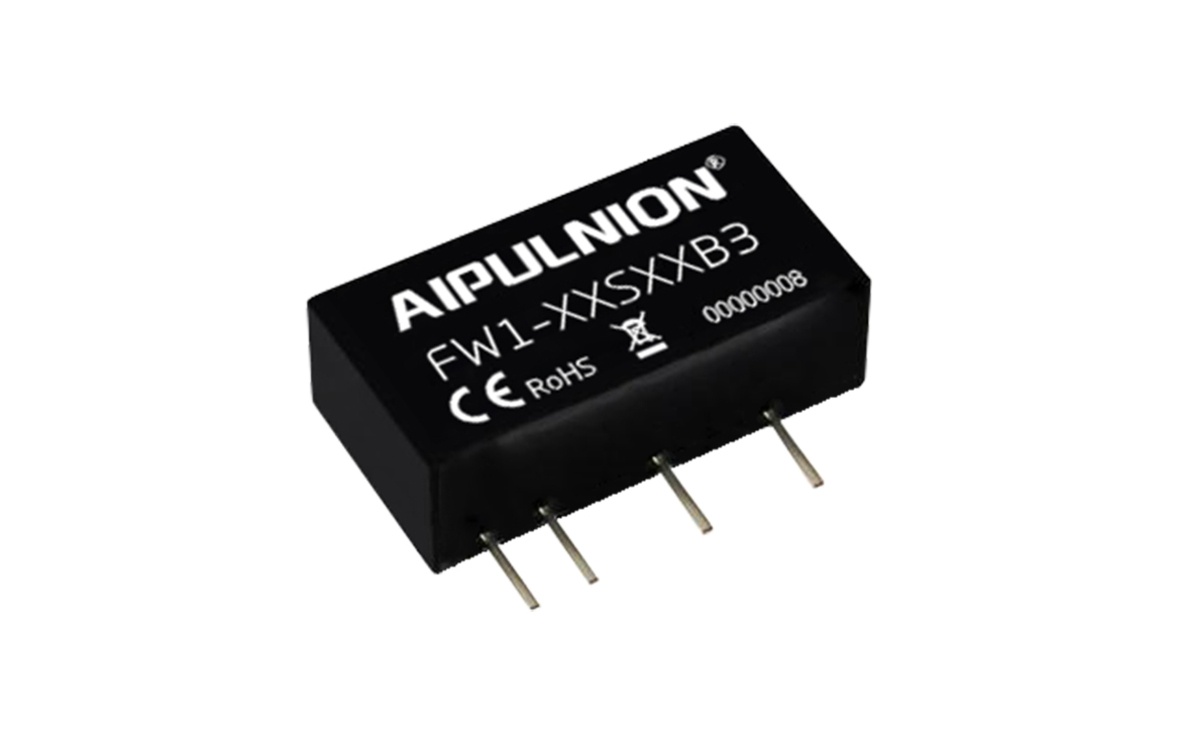

FW1-XXXXXB3 系列
-/4.75-25.2 -/3000 19.5*6.0*10.0
FW1-24S24B3 1 -/22.8-25.2 67 -/3000 19.5*6.0*10.0 -
FW1-24S15B3 1 -/22.8-25.2 77 -/3000 19.5*6.0*10.0 -
FW1-24S12B3 1 -/22.8-25.2 76 -/3000 19.5*6.0*10.0 -
FW1-24S05B3 1 -/22.8-25.2 74 -/3000 19.5*6.0*10.0 -
FW1-12S15B3 1 -/11.4-12.6 74 -/3000 19.5*6.0*10.0 -
FW1-12S12B3 1 -/11.4-12.6 79 -/3000 19.5*6.0*10.0 -
FW1-12S05B3 1 -/11.4-12.6 77 -/3000 19.5*6.0*10.0 -
FW1-05S24B3 1 -/4.75-5.25 73 -/3000 19.5*6.0*10.0 -
FW1-05S15B3 1 -/4.75-5.25 77 -/3000 19.5*6.0*10.0 -
FW1-05S12B3 1 -/4.75-5.25 78 -/3000 19.5*6.0*10.0 -
FW1-05S05B3 1 -/4.75-5.25 71 -/3000 19.5*6.0*10.0 -
FW1-05S3V3B3 1 -/4.75-5.25 69 -/3000 19.5*6.0*10.0 -

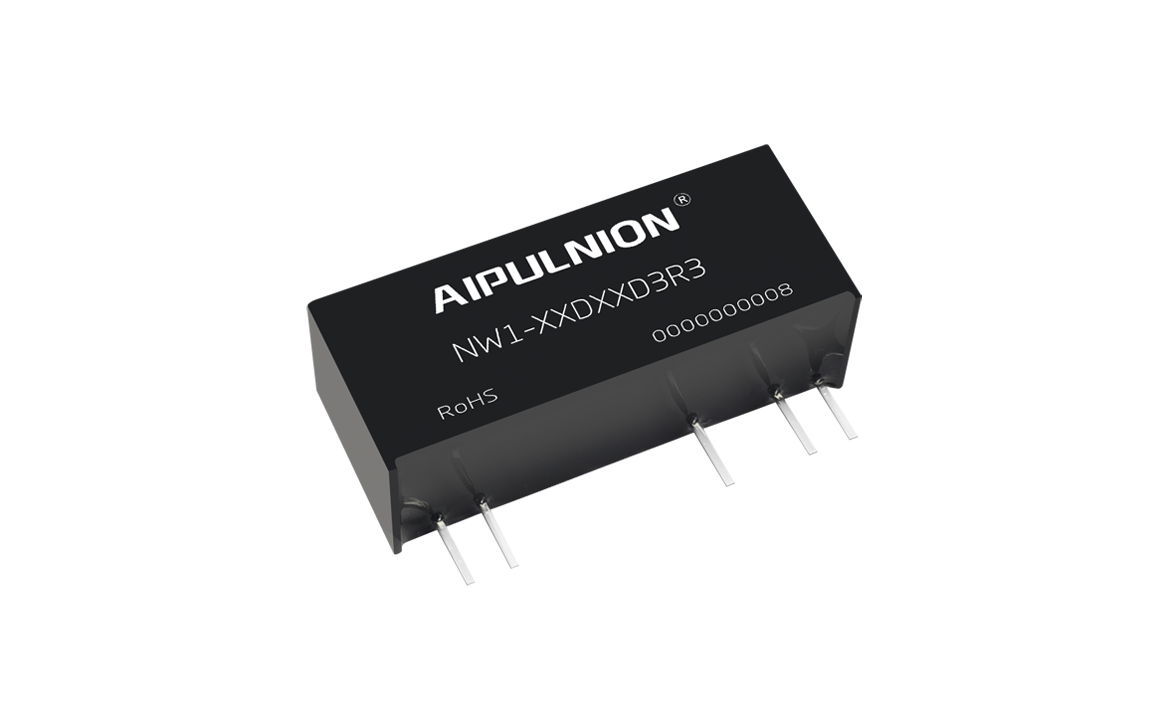

NW1-XXDXXD3R3 系列
-/4.75-5.25 -/3000 27.50*9.50*12.00
NW1-24D15D3R3 1 -/22.8-25.2 83 -/3000 27.50*9.50*12.00 -
NW1-24D12D3R3 1 -/22.8-25.2 82 -/3000 27.50*9.50*12.00 -
NW1-24D05D3R3 1 -/22.8-25.2 80 -/3000 27.50*9.50*12.00 -
NW1-12D15D3R3 1 -/11.4-12.6 83 -/3000 27.50*9.50*12.00 -
NW1-12D12D3R3 1 -/11.4-12.6 81 -/3000 27.50*9.50*12.00 -
NW1-12D09D3R3 1 -/11.4-12.6 83 -/3000 27.50*9.50*12.00 -
NW1-12D05D3R3 1 -/11.4-12.6 80 -/3000 27.50*9.50*12.00 -
NW1-05D15D3R3 1 -/4.75-5.25 80 -/3000 27.50*9.50*12.00 -
NW1-05D12D3R3 1 -/4.75-5.25 82 -/3000 27.50*9.50*12.00 -
NW1-05D09D3R3 1 -/4.75-5.25 80 -/3000 27.50*9.50*12.00 -
NW1-05D05D3R3 1 -/4.75-5.25 81 -/3000 27.50*9.50*12.00 -
NW1-XXDXXDR3 系列
-/4.75-5.25 -/1500 27.50*9.50*12.00
NW1-24D15DR3 1 -/22.8-25.2 83 -/1500 27.50*9.50*12.00 -
NW1-24D12DR3 1 -/22.8-25.2 82 -/1500 27.50*9.50*12.00 -
NW1-24D05DR3 1 -/22.8-25.2 80 -/1500 27.50*9.50*12.00 -
NW1-12D15DR3 1 -/11.4-12.6 83 -/1500 27.50*9.50*12.00 -
NW1-12D12DR3 1 -/11.4-12.6 81 -/1500 27.50*9.50*12.00 -
NW1-12D09DR3 1 -/11.4-12.6 83 -/1500 27.50*9.50*12.00 -
NW1-12D05DR3 1 -/11.4-12.6 80 -/1500 27.50*9.50*12.00 -
NW1-05D15DR3 1 -/4.75-5.25 80 -/1500 27.50*9.50*12.00 -
NW1-05D12DR3 1 -/4.75-5.25 82 -/1500 27.50*9.50*12.00 -
NW1-05D09DR3 1 -/4.75-5.25 80 -/1500 27.50*9.50*12.00 -
NW1-05D05DR3 1 -/4.75-5.25 81 -/1500 27.50*9.50*12.00 -

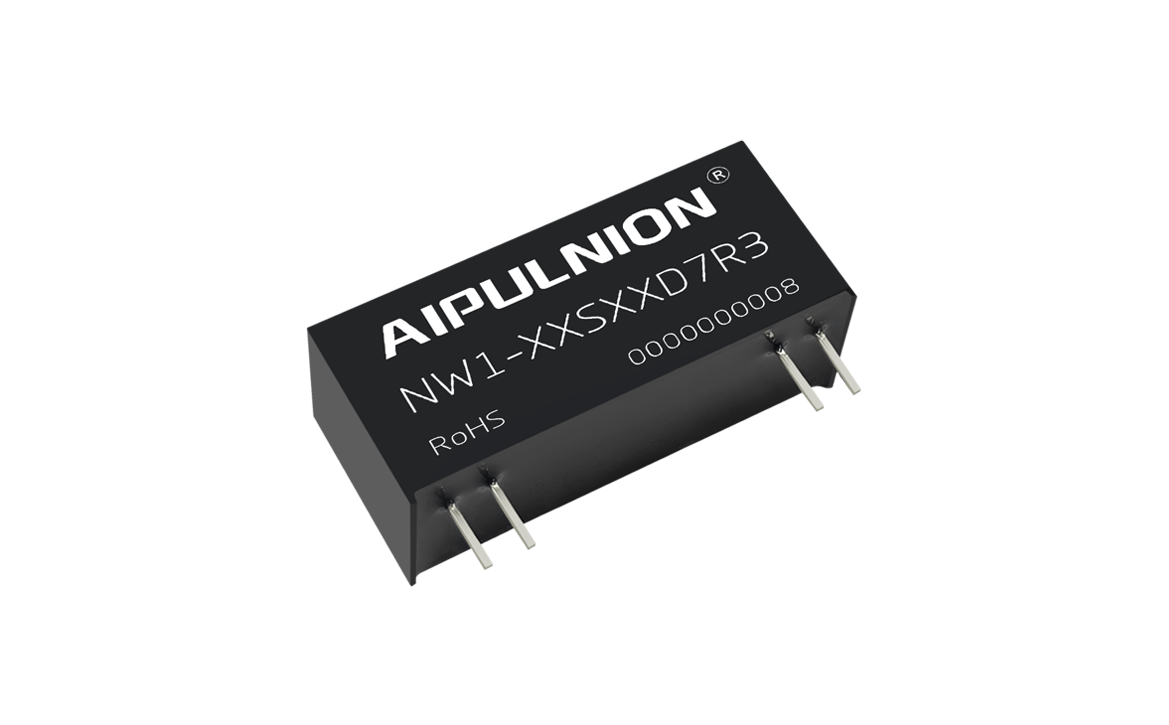

NW1-XXSXXD7R3 系列
-/4.5-5.5 5000/- 27.50*9.50*12.00
NW1-12S05D7R3 1 -/10.8-13.2 73 5000/- 27.50*9.50*12.00 -
NW1-05S05D7R3 1 -/4.5-5.5 73 5000/- 27.50*9.50*12.00 -

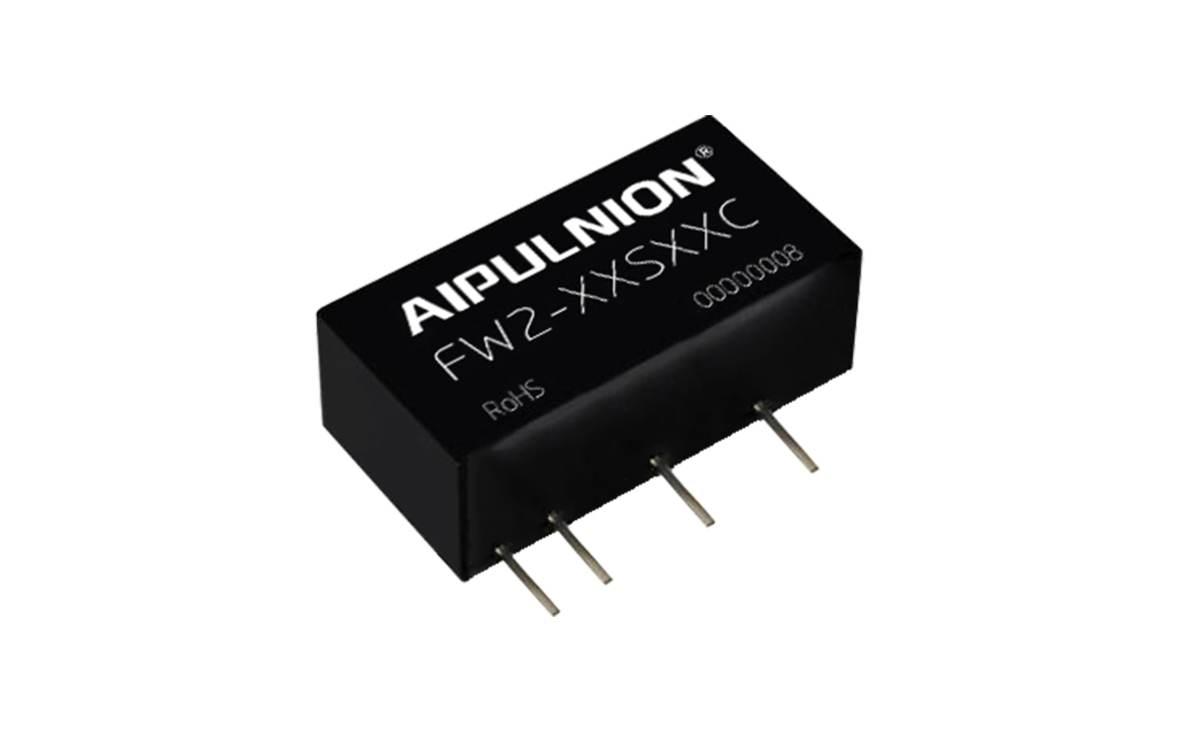

FW2-XXSXXC 系列
-/4.75-25.2 -/1500 19.5*7.0*10.0
FW2-24S09C 2 -/22.8-25.2 77 -/1500 19.5*7.0*10.0
FW2-15S12C 2 -/14.27-15.75 77 -/1500 19.5*7.0*10.0 -
FW2-12S15C 2 -/11.4-12.6 77 -/1500 19.5*7.0*10.0 -
FW2-12S09C 2 -/11.4-12.6 77 -/1500 19.5*7.0*10.0 -
FW2-05S15C 2 -/4.75-5.25 77 -/1500 19.5*7.0*10.0 -
FW2-24S15C 2 -/22.8-25.2 77 -/1500 19.5*7.0*10.0 CE
FW2-24S12C 2 -/22.8-25.2 77 -/1500 19.5*7.0*10.0 CE
FW2-24S05C 2 -/22.8-25.2 70 -/1500 19.5*7.0*10.0 CE
FW2-15S15C 2 -/14.27-15.75 77 -/1500 19.5*7.0*10.0 -
FW2-15S05C 2 -/14.27-15.75 70 -/1500 19.5*7.0*10.0 -
FW2-12S12C 2 -/11.4-12.6 77 -/1500 19.5*7.0*10.0 -
FW2-12S05C 2 -/11.4-12.6 70 -/1500 19.5*7.0*10.0 -
FW2-05S12C 2 -/4.75-5.25 77 -/1500 19.5*7.0*10.0 -
FW2-05S05C 2 -/4.75-5.25 69 -/1500 19.5*7.0*10.0 -

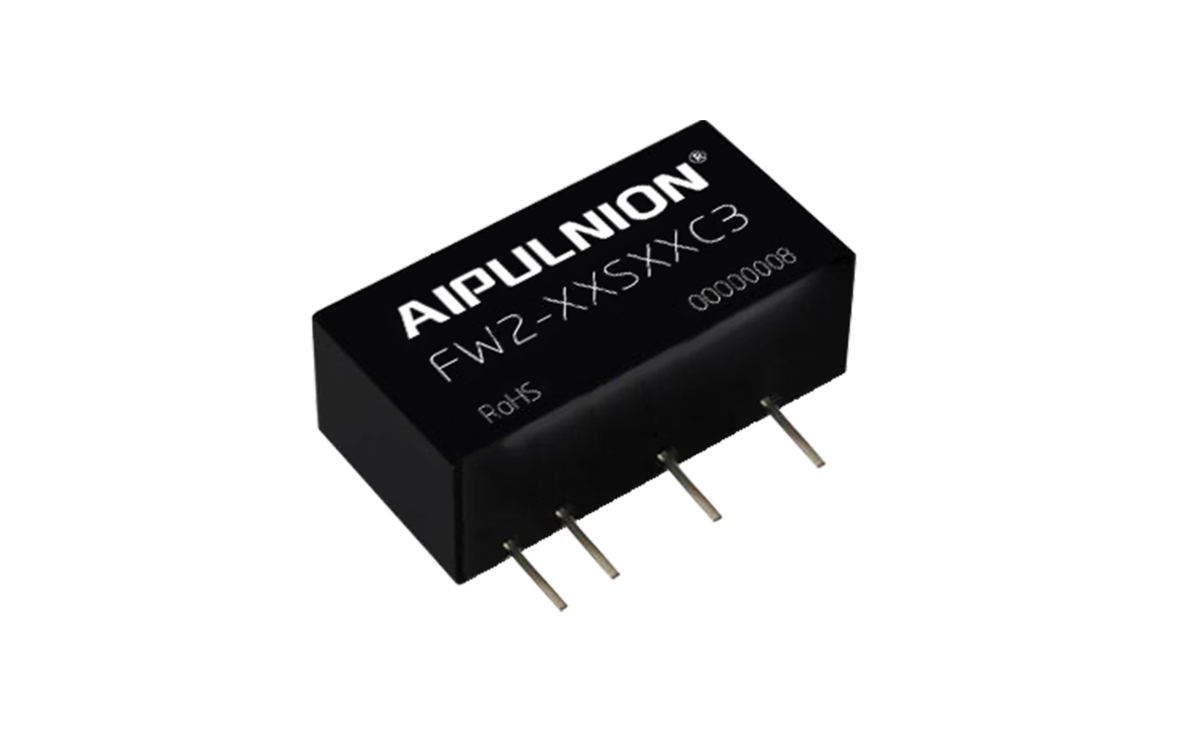

FW2-XXXXXC3 系列
-/4.75-25.2 -/3000 19.5*7.0*10.0
FW2-24S15C3 2 -/22.8-25.2 80 -/3000 19.5*7.0*10.0 -
FW2-24S12C3 2 -/22.8-25.2 78 -/3000 19.5*7.0*10.0 -
FW2-24S05C3 2 -/22.8-25.2 73 -/3000 19.5*7.0*10.0 -
FW2-15S05C3 2 -/14.27-15.75 70 -/3000 19.5*7.0*10.0 -
FW2-12S12C3 2 -/11.4-12.6 82 -/3000 19.5*7.0*10.0 -
FW2-12S05C3 2 -/11.4-12.6 74 -/3000 19.5*7.0*10.0 -
FW2-05S12C3 2 -/4.75-5.25 78 -/3000 19.5*7.0*10.0 -
FW2-05S05C3 2 -/4.75-5.25 68 -/3000 19.5*7.0*10.0 -
NW2-XXDXXD3R3 系列
-/22.8-25.2 -/3000 27.50*8.80*11.50
NW2-24D15D3R3 2 -/22.8-25.2 83 -/3000 27.50*8.80*11.50 -
NW2-24D12D3R3 2 -/22.8-25.2 80 -/3000 27.50*8.80*11.50 -
NW2-24D05D3R3 2 -/22.8-25.2 79 -/3000 27.50*8.80*11.50 -
NW2-12D15D3R3 2 -/11.4-12.6 82 -/3000 27.50*8.80*11.50 -
NW2-12D12D3R3 2 -/11.4-12.6 83 -/3000 27.50*8.80*11.50 -
NW2-12D09D3R3 2 -/11.4-12.6 80 -/3000 27.50*8.80*11.50 -
NW2-12D05D3R3 2 -/11.4-12.6 80 -/3000 27.50*8.80*11.50 -
NW2-05D15D3R3 2 -/4.75-5.25 80 -/3000 27.50*8.80*11.50 -
NW2-05D12D3R3 2 -/4.75-5.25 80 -/3000 27.50*8.80*11.50 -
NW2-05D09D3R3 2 -/4.75-5.25 80 -/3000 27.50*8.80*11.50 -
NW2-05D05D3R3 2 -/4.75-5.25 80 -/3000 27.50*8.80*11.50 -

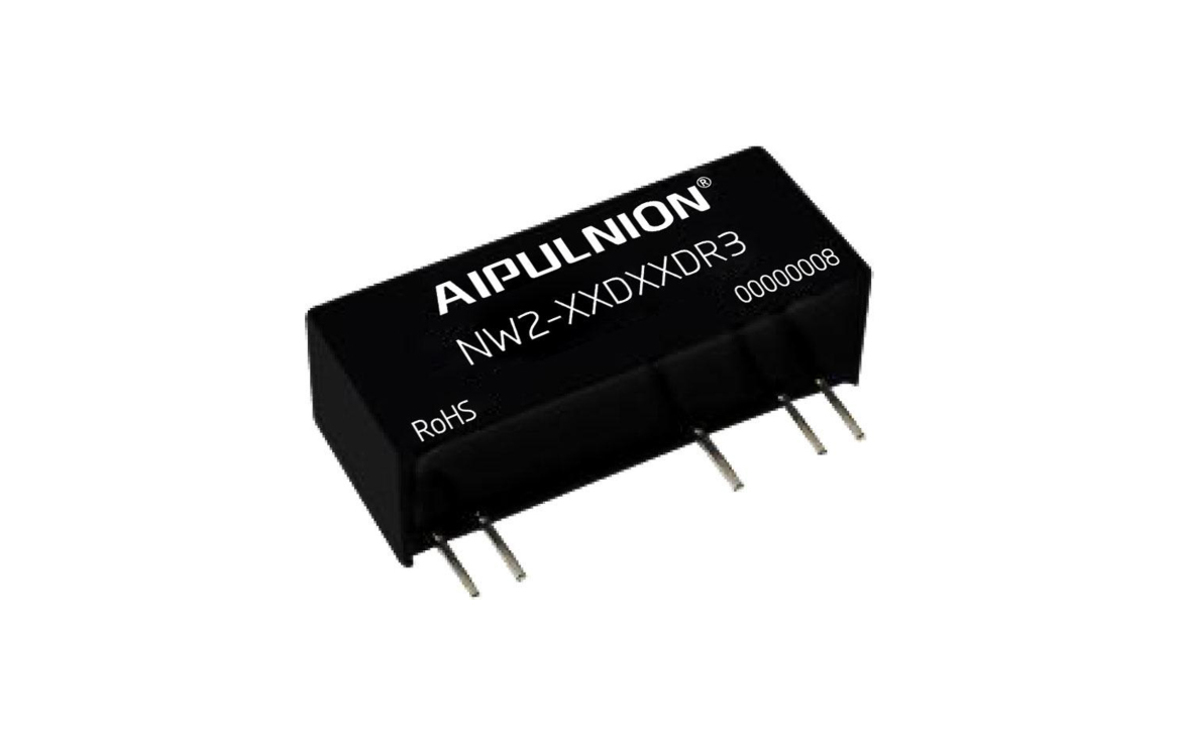

NW2-XXDXXDR3 系列
-/4.75-5.25 -/1500 27.5*9.5*12.0
NW2-24D15DR3 2 -/22.8-25.2 83 -/1500 27.4*8.8*11.4 -
NW2-24D12DR3 2 -/22.8-25.2 80 -/1500 27.4*8.8*11.4 -
NW2-12D09DR3 2 -/11.4-12.6 80 -/1500 27.4*8.8*11.4 -
NW2-12D12DR3 2 -/11.4-12.6 83 -/1500 27.4*8.8*11.4 -
NW2-12D15DR3 2 -/11.4-12.6 82 -/1500 27.4*8.8*11.4 -
NW2-24D05DR3 2 -/22.8-25.2 79 -/1500 27.4*8.8*11.4 -
NW2-05D05DR3 2 -/4.75-5.25 80 -/1500 27.4*8.8*11.4 -
NW2-05D09DR3 2 -/4.75-5.25 80 -/1500 27.4*8.8*11.4 -
NW2-05D12DR3 2 -/4.75-5.25 80 -/1500 27.4*8.8*11.4 -
NW2-05D15DR3 2 -/4.75-5.25 80 -/1500 27.4*8.8*11.4 -
NW2-12D05DR3 2 -/11.4-12.6 80 -/1500 27.4*8.8*11.4 -
