| 产品型号 | 图片 | 功率(W) | 输入电压(Vac/Vdc) | 输出电压(Vdc) | 效率(%) | 隔离电压(Vac/Vdc) | 封装尺寸(mm) | 认证/标准 | 规格书 3D图 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|
 |
90-265/127-375 | 4000/- | 50.8*25.4*15.16 |
|
||||||
| FA5-220S24Y2D4 | 5 | 90-265/127-375 | 79 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
| FA5-220S15Y2D4 | 5 | 90-265/127-375 | 78 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
| FA5-220S12Y2D4 | 5 | 90-265/127-375 | 78 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
| FA5-220S09Y2D4 | 5 | 90-265/127-375 | 74 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
| FA5-220S05Y2D4 | 5 | 90-265/127-375 | 71 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
| FA5-220S3V3Y2D4 | 5 | 90-265/127-375 | 69 | 4000/- | 50.8*25.4*15.16 | - |
|
|||
 |
85-305/120-430 | 4000/- | 55.0*45.0*20.5 |
|
||||||

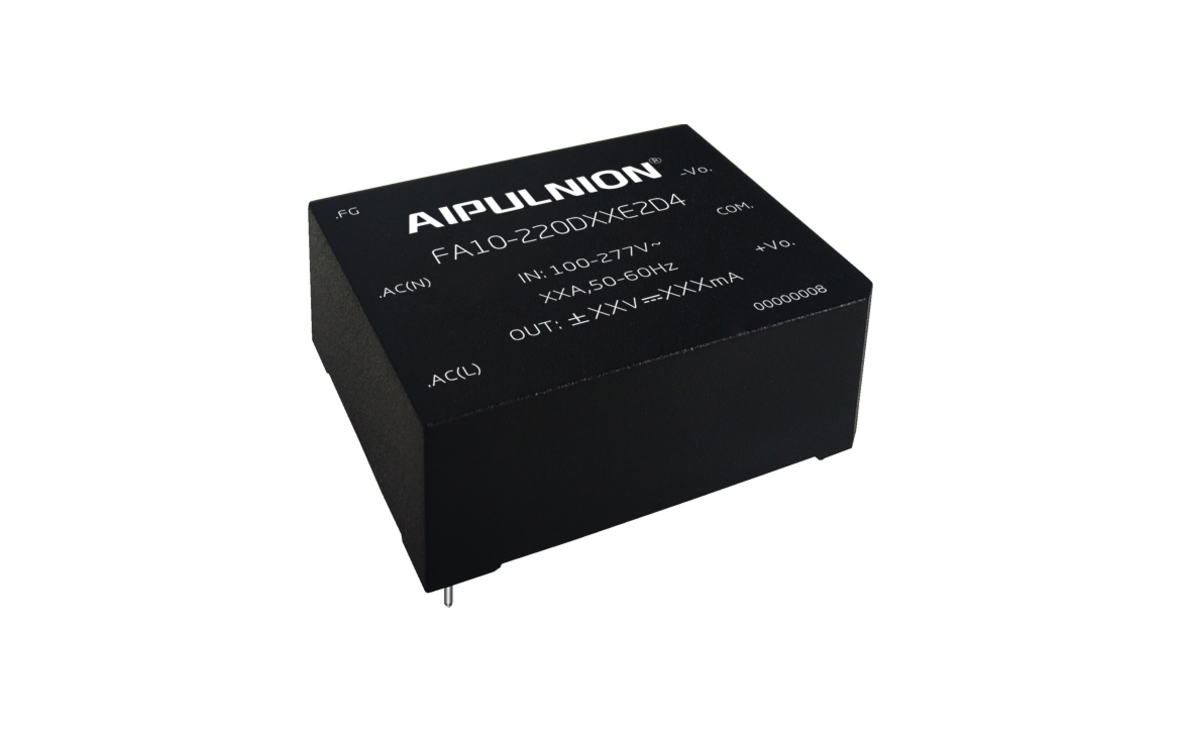

| FA10-220D09E2D4 | 10 | 85-305/120-430 | 79 | 4000/- | 55.0*45.0*20.5 | - |
|
|||
| FA10-220D24E2D4 | 10 | 85-305/120-430 | 82 | 4000/- | 55.0*45.0*20.5 | - |
|
|||
| FA10-220D15E2D4 | 10 | 85-305/120-430 | 80 | 4000/- | 55.0*45.0*20.5 | - |
|
|||
| FA10-220D12E2D4 | 10 | 85-305/120-430 | 80 | 4000/- | 55.0*45.0*20.5 | - |
|
|||
| FA10-220D05E2D4 | 10 | 85-305/120-430 | 76 | 4000/- | 55.0*45.0*20.5 | - |
|
|||
 |
85-305/120-430 | 4200/- | 70.0*48.0*23.5 |
|
||||||
| FA25-220S09H2D4P2 | 25 | 85-305/120-430 | 84 | 4200/- | 70.0*48.0*23.5 | - |
|
|||
| FA25-220S12H2D4P2 | 25 | 85-305/120-430 | 84 | 4200/- | 70.0*48.0*23.5 | - |
|
|||
| FA25-220S15H2D4P2 | 25 | 85-305/120-430 | 85 | 4200/- | 70.0*48.0*23.5 | - |
|
|||
| FA25-220S24H2D4P2 | 25 | 85-305/120-430 | 85 | 4200/- | 70.0*48.0*23.5 | - |
|
|||
 |
-/100-1000 | -/4000 | 70.0*48.0*23.5 |
|
||||||

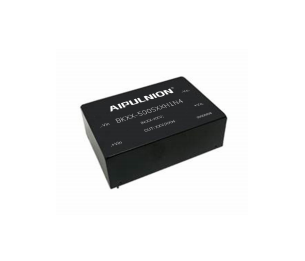

| BK25-500S24H1N4 | 25 | -/100-1000 | 85 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-500S15H1N4 | 25 | -/100-1000 | 83 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-500S12H1N4 | 25 | -/100-1000 | 82 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
 |
-/200-1200 | -/4000 | 70.0*48.0*23.5 |
|
||||||
| BK25-600S24H1N4 | 25 | -/200-1200 | 84 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600S15H1N4 | 25 | -/200-1200 | 83 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600S12H1N4 | 25 | -/200-1200 | 82 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600S05H1N4 | 25 | -/200-1200 | 80 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
 |
-/200-1200 | -/4000 | 70.0*48.0*23.5 |
|
||||||
| BK25-600D24H1N4 | 25 | -/200-1200 | 85 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600D15H1N4 | 25 | -/200-1200 | 84 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600D12H1N4 | 25 | -/200-1200 | 83 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
| BK25-600D05H1N4 | 25 | -/200-1200 | 80 | -/4000 | 70.0*48.0*23.5 | - |
|
|||
 |
-/250-1500 | 4000/- | 201.0*70.0*42.0 |
|
||||||

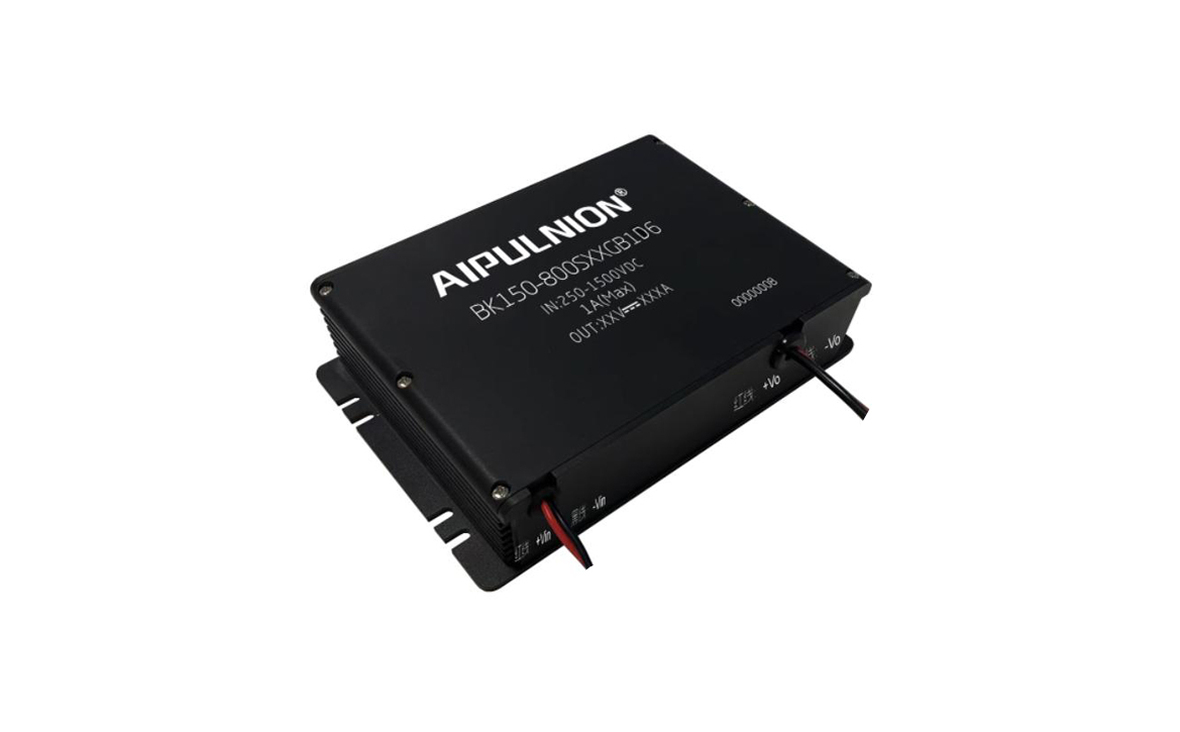

| BK150-800S28GA1D6-2 | 150 | -/250-1500 | 89 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
| BK150-800S28GA1D6-1 | 150 | -/250-1500 | 89 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
| BK150-800S35GA1D6 | 150 | -/250-1500 | 90 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
| BK150-800S32GA1D6 | 150 | -/250-1500 | 90 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
| BK150-800S28GA1D6 | 150 | -/250-1500 | 89 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
| BK150-800S24GA1D6 | 150 | -/250-1500 | 88 | 4000/- | 201.0*70.0*42.0 | - |
|
|||
 |
-/250-1500 | 4000/- | 168.0*111.2*42.5 |
|
||||||

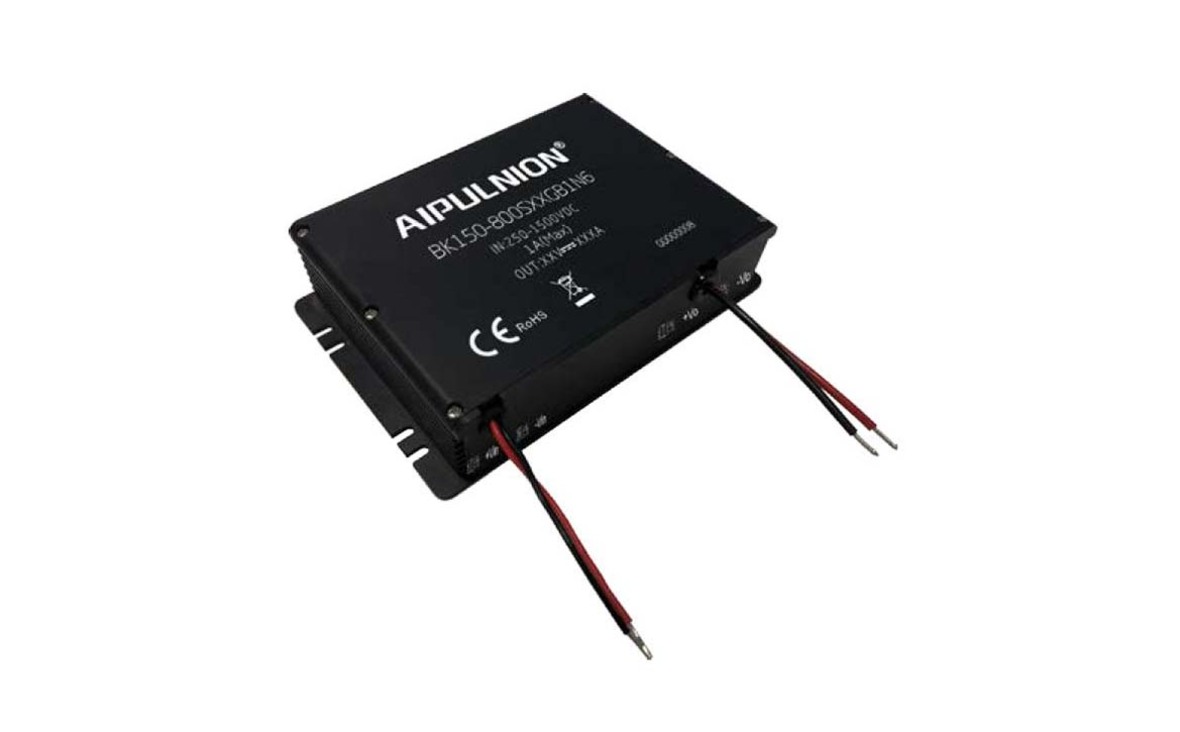

| BK150-800S24GB1D6(-1)(-2) | 150 | -/250-1500 | 88 | 4000/- | 168.0*111.2*42.5 | CE |
|
|||
| BK150-800S15GB1D6 | 150 | -/250-1500 | 87 | 4000/- | 168.0*111.2*42.5 | - |
|
|||
| BK150-800S28GB1D6 | 150 | -/250-1500 | 89 | 4000/- | 168.0*111.2*42.5 | CE |
|
|||
| BK150-800S12GB1D6 | 150 | -/250-1500 | 84 | 4000/- | 168.0*111.2*42.5 | CE |
|
